SELECT A DIAGRAM
01 - Cover Sheet
02 - Oven, Cabinet

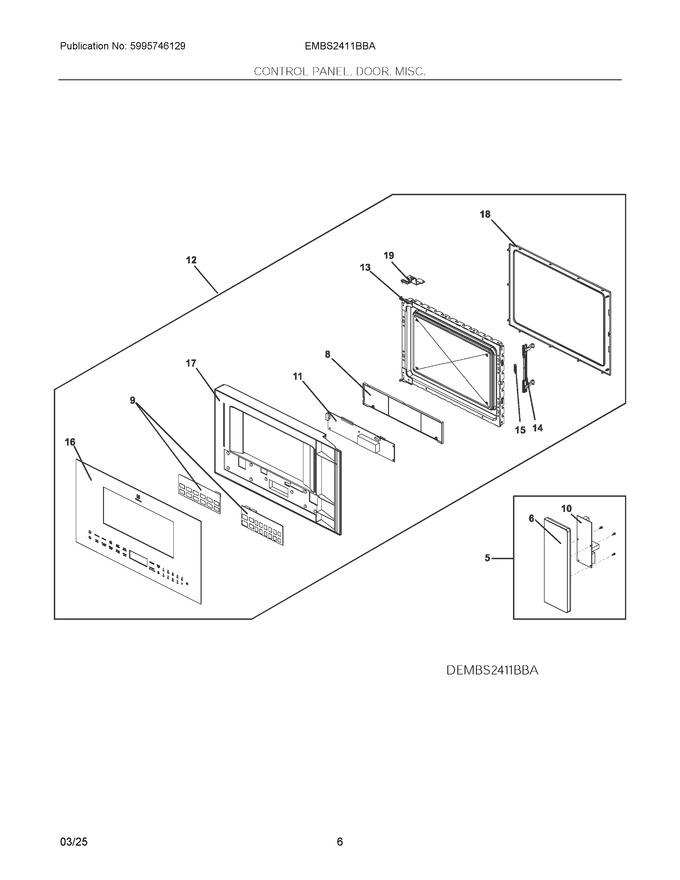

03 - Control Panel, Door, Misc.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 4056020995 | Control Panel, Assembly, W/pc Board |
|
- | |||||
| 6 | 4056021001 | Control Panel, Front |
|
- | |||||
| 8 | 5304528937 | Cover, Pc Board |
|
- | |||||
| 9 | 4056021019 | Pc Board, User Interface |
|
- | |||||
| 10 | 5304537439 | Pc Board, Main Control |
|
- | |||||
| 11 | 4056021027 | Pc Board, Display |
|
- | |||||
| 12 | 4056021035 | Door Assembly, Complete, W/pc Board |
|
- | |||||
| 13 | 5304528939 | Frame Assembly, Door |
|
- | |||||
| 14 | 5304537441 | Door Latch |
|
- | |||||
| 15 | 5304519334 | Spring, Door Latch |
|
$ 5.21 | |||||
| 16 | 4056021043 | Door Front, Screen Panel, Glass |
|
- | |||||
| 17 | 5304528942 | Frame Assembly, Inner Door |
|
- | |||||
| 18 | 5304528943 | Gasket, Door |
|
- | |||||
| 19 | 5304519333 | Hinge, Door, Upper |
|
$ 24.62 |
