SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Tub&frame


05 - Motor & Pump


06 - Racks


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

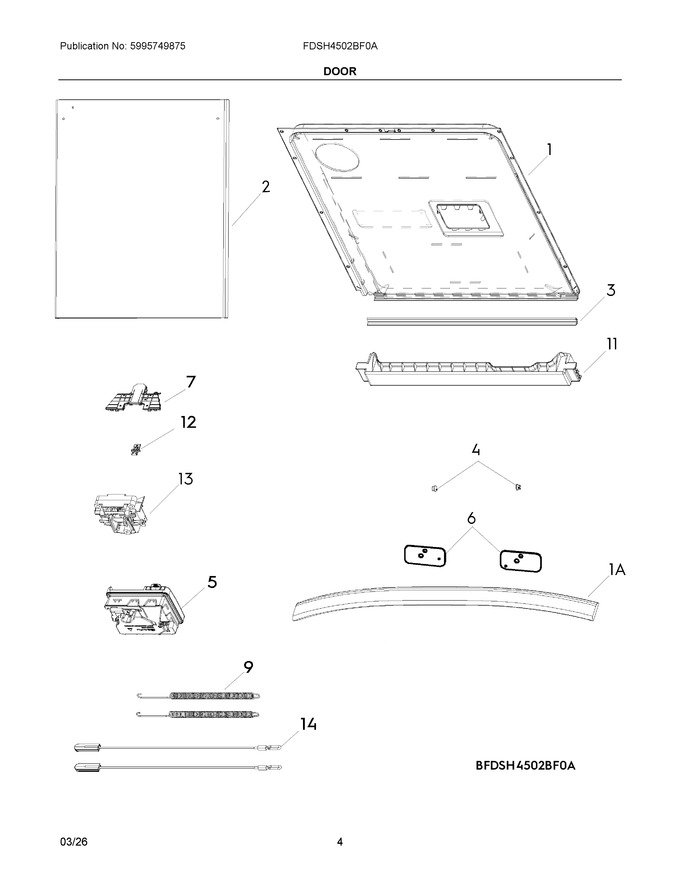

1	5304538982		Inner Door, Assembly, 2				$ 139.37
2	4056012711		Outer Door, Stainless				$ 125.22
3	5304538985		Seal, Door		Appelez-nous	-
4	5304538978		Screw, Door Handle		Appelez-nous	-
5	5304538981		Dispenser, Detergent			Immediately	$ 87.33
6	5304538979		Plate, Door Handle		Appelez-nous	-
7	5304538993		Door Lock, Assembly				$ 63.32
9	5304539012		Spring, Door		Appelez-nous	-
10	5304537603		Damp		Appelez-nous	-
11	5304538992		Liner, Door				$ 28.77
12	5304538998		Hook, Door Lock				$ 3.19
13	5304537599		Door Switch			Immediately	$ 29.88
14	5304516618		Cable, Door, (2)			Immediately	$ 23.86
1A	4056012703		Door Handle, Stainless				$ 119.09
NI	5304537603		Damp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
