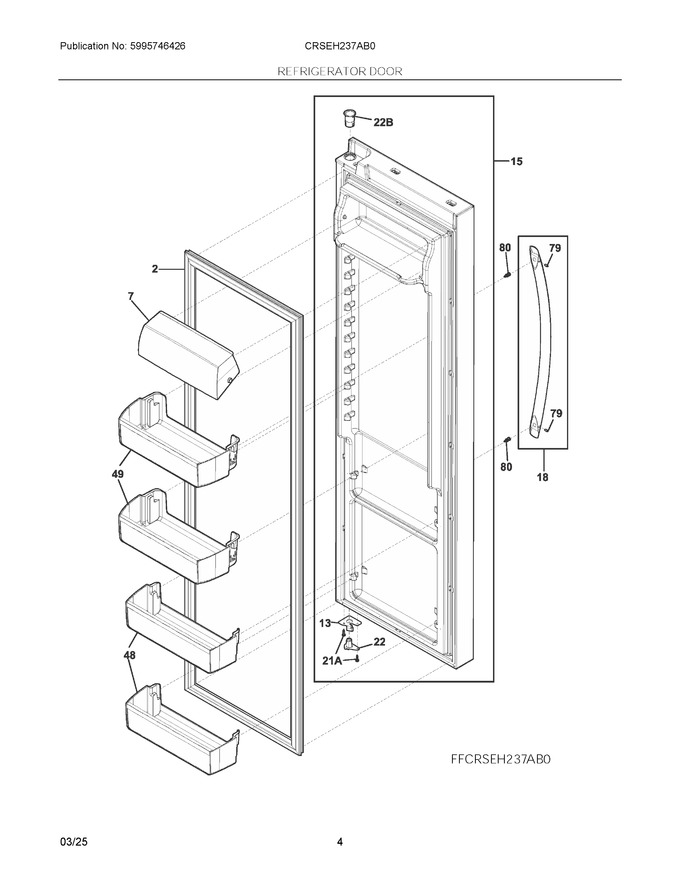

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786015 | Gasket-refrigerator Door, Black, Magnetic |
|
Immediately | $ 94.66 | ||||
| 7 | 5304526901 | Cover, Compartment, Dairy |
|
Immediately | $ 106.83 | ||||
| 13 | 5304527379 | Stop, Door, Black, Fresh Food |
|
$ 15.17 | |||||
| 15 | 5304527282 | Door Assembly, Fresh Food, Black, Complete |
|
- | |||||
| 18 | 5304536620 | Handle, Door, Black, W/set Screws |
|
$ 76.24 | |||||
| 22 | 5304532162 | Bushing, Hinge, Black, Lower |
|
$ 5.01 | |||||
| 48 | 5304536369 | Bin Assembly, 2 Liter, Fresh Food Door (Replaces: 5304527144) |
|
Immediately | $ 38.66 | ||||
| 49 | 5304536370 | Bin Assembly, Gallon, Fresh Food Door (Replaces: 5304527143) |
|
$ 45.69 | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 12.76 |
