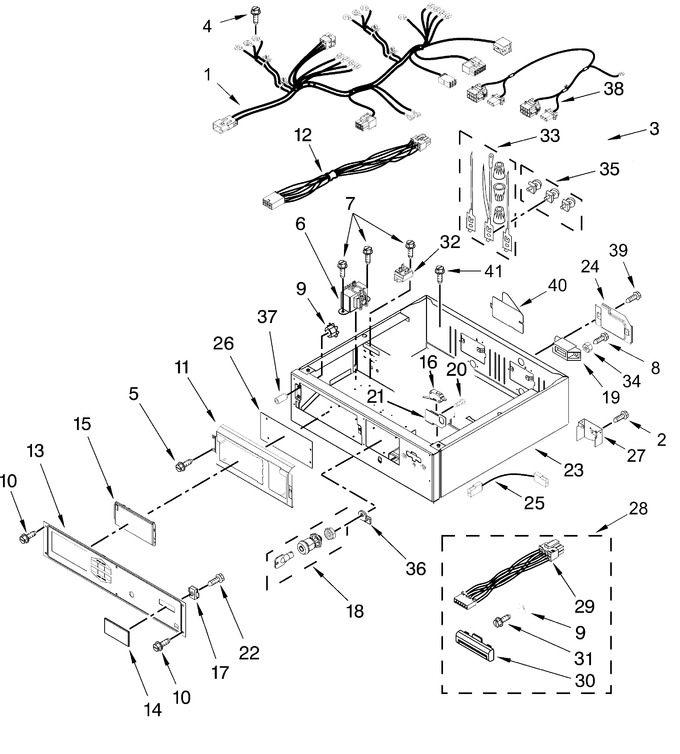

SELECT A DIAGRAM

Control Panel And Separator Parts


Lower Cabinet And Front Panel Parts


Optional Parts (not Included)


Upper And Lower Bulkhead Parts


Upper Cabinet And Front Panel Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10807487		Harness, Collar (includes Motor Relay)		Appelez-nous	-
2	WP3388228		Screw   (Replaces: 3388228)				$ 6.26
3	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 5.55
4	W10850756		Screw   (Replaces: W10773242)				$ 6.98
5	W10756178		Screw   (Replaces: W10140652)				$ 5.39
6	WPW10133285		Transformer 120vac To 22.5vac   (Replaces: W10133285)				$ 184.03
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
8	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
9	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
11	W10657185		Plate, Control Mounting		Appelez-nous	-
12	W10111027		Jumper, Transformer				$ 41.23
13	W11761591		Facia   (Replaces: W11651083)		Appelez-nous	-
14	W11164066		Cover, Card Reader   (Replaces: W10137769)		Appelez-nous	-
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 63.37
16	WPW10447152		Switch, Service Access   (Replaces: W10447152)				$ 37.08
17	W10145157		Retainer, Facia Cover		Appelez-nous	-
18	W11191256		Assembly, Lock Access Door   (Replaces: W10899602)				$ 32.33
19	W11690172		Terminal-block   (Replaces: W10237321)				$ 340.88
20	3400408		Screw		Appelez-nous	-
21	W10160652		Bracket-switch		Appelez-nous	-
22	3400618		Screw				$ 58.23
23	W11743893		Collar   (Replaces: W11455510)		Appelez-nous	-
24	W10850065		Cover, Terminal Block		Appelez-nous	-
25	W10769481		Jumper, Coin Box		Appelez-nous	-
26	W11743892		Control Board   (Replaces: W11582595)		Appelez-nous	-
27	W10192090		Bracket, Terminal Block				$ 92.91
28	W11498818		Instructions, Installation (card Reader)		Appelez-nous	-
29	WPW10239515		Harness, Card Reader   (Replaces: W10239515)				$ 133.01
30	W10163036		Bezel				$ 18.36
31	WPW10143462		Screw   (Replaces: W10143462)				$ 5.40
32	W10827406		Relay, Motor		Appelez-nous	-
33	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 90.89
34	WP112432		Nut, Hex   (Replaces: 112432)				$ 7.16
35	279393		Screw Kit, Terminal Block			Immediately	$ 42.63
36	W11165684		Cam, Locking   (Replaces: W10913660)				$ 8.20
37	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
38	W10807493		Jumper, Lower To Collar		Appelez-nous	-
39	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.04
40	W11539855		Cover, Terminal Block   (Replaces: 3396795)			Immediately	$ 539.78
41	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
	ARIDE6C4C108AB542F4C0367D3966DF876E		Not Illustrated		Appelez-nous	-
	ARID0DC7708C9BF70253FF0B940B7FD490C		Collar To Lower Cabinet		Appelez-nous	-
	3400500		Bolt			Immediately	$ 12.03
	ARI777C580960DC877FAECC2F1613E00249		Collar To Cabinet Flange		Appelez-nous	-
	WP33001882		Screw   (Replaces: 337686)				$ 71.75
