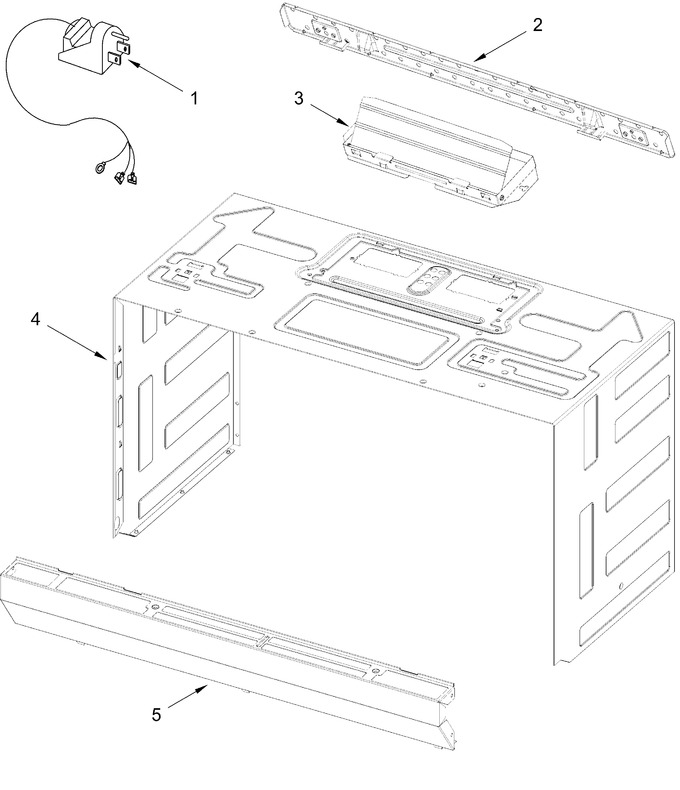

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10708076 | Cord, Power |
|
$ 18.48 | |||||
| 2 | W11025649 | Plate, Mounting |
|
Immediately | $ 21.16 | ||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 4 | W11776420 | Case, Outer (black) (Replaces: W11446916) |
|
Immediately | $ 156.14 | ||||
| 5 | W11796380 | Grille, Vent (black) (Replaces: W11648231) |
|
$ 84.29 | |||||
| W11301790 | Harness, Magnetron To High Voltage Transformer |
|
Immediately | $ 131.14 | |||||
| W11752405 | Jump Wire, A38 Hmi (Replaces: W11677243) |
|
- | ||||||
| W11355486 | Harness, Door Signal Switch |
|
- | ||||||
| W11752404 | Harness, Iic Cable For Touch (Replaces: W11677241) |
|
- | ||||||
| W11753214 | Harness, Main (Replaces: W11659053) |
|
- | ||||||
| W10190018 | Template, Upper (english & French) |
|
Immediately | $ 6.47 | |||||
| W10821385 | Hardware, Installation |
|
Immediately | $ 88.90 | |||||
| ARI2EB13EA73395E08F3EB3E7CF4E6B6B38 | Miscellaneous Parts |
|
- |
