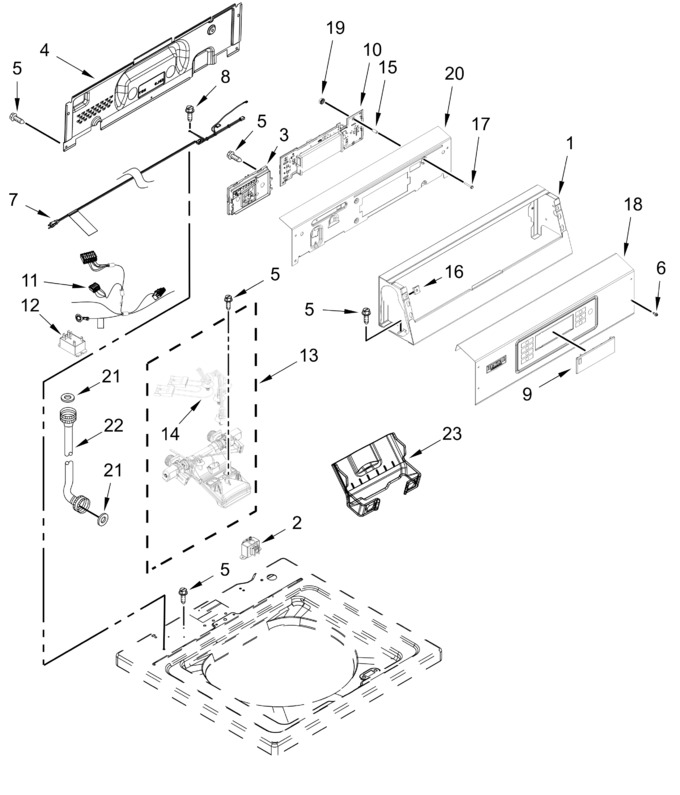

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10461094		Console (white)				$ 159.97
2	WPW10131839		Transformer 120 - 22.5 Vac   (Replaces: W10131839)			Immediately	$ 120.20
3	W11833200		Machine And Motor Control Unit Assembly   (Replaces: W11455494)				$ 332.20
4	W11743902		Panel, Console Rear Cover   (Replaces: W11425708)		Appelez-nous	-
5	W11685943		Screw   (Replaces: W10660565)				$ 12.83
6	WPW10131119		Screw   (Replaces: W10131119)				$ 6.26
7	W11763414		Cord, Power   (Replaces: W10916258)		Appelez-nous	-
8	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 6.98
9	W11637765		Cover, Display   (Replaces: W11565137)				$ 59.65
10	W11761404		User Interface   (Replaces: W11456057)				$ 306.83
11	W11680813		Harness, Upper   (Replaces: W10843665)				$ 164.59
12	W11384790		Relay   (Replaces: W11032871)			Immediately	$ 67.27
13	W11205048		Inlet Assembly, Water   (Replaces: W10843663)			Immediately	$ 138.32
14	W10843398		Harness, Valve				$ 127.12
15	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
16	WPW10131123		U-nut   (Replaces: W10131123)				$ 6.94
17	W11117300		Screw   (Replaces: W10137322)		Appelez-nous	-
18	W11089533		Fascia   (Replaces: W10821626)				$ 683.03
19	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
20	W11743883		Bracket, Control   (Replaces: W11407434)		Appelez-nous	-
21	WP16123		Washer, Hose   (Replaces: W10242307)				$ 6.93
22	W11085908		Inlet Hose (cold Water)   (Replaces: W10852720)			Immediately	$ 44.33
23	W11815006		Water Diverter   (Replaces: W11770754)				$ 30.17
	W11085908		Inlet Hose (hot Water)   (Replaces: W10852721)			Immediately	$ 44.33
