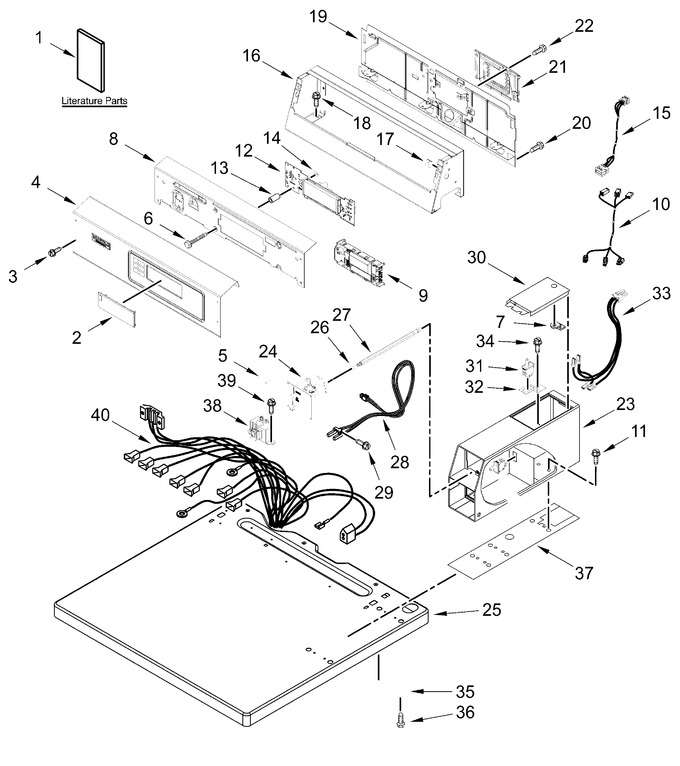

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	W11637765		Cover, Display   (Replaces: W11565137)				$ 59.65
3	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
4	W11101010		Fascia   (Replaces: W10845282)		Appelez-nous	-
5	3407172		Choke, Harness		Appelez-nous	-
6	W11117300		Screw   (Replaces: W10137322)		Appelez-nous	-
7	W11401086		Cam, Commercial Lock   (Replaces: W10156125)				$ 6.17
8	W11743883		Bracket, Control   (Replaces: W11407434)		Appelez-nous	-
9	W11743884		Control Board   (Replaces: W11487487)		Appelez-nous	-
10	W11743885		Harness, Coin Extender   (Replaces: W11512935)		Appelez-nous	-
11	W11715721		Bolt   (Replaces: 3349065)				$ 6.41
12	W11759236		Control, User Interface   (Replaces: W11456058)		Appelez-nous	-
13	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
14	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
15	W11743888		Harness, User Interface   (Replaces: W11554061)		Appelez-nous	-
16	W10461094		Console				$ 159.97
17	WPW10131123		U-nut   (Replaces: W10131123)				$ 6.94
18	WPW10139210		Screw   (Replaces: W10139210)				$ 6.75
19	W11743887		Panel, Rear (console)   (Replaces: W11447699)		Appelez-nous	-
20	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
21	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 115.52
22	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
23	WPW10529176		Meter Case   (Replaces: W10529176)				$ 273.48
24	WPW10133242		Assembly, Single Coin Drop   (Replaces: W10133242)				$ 126.51
25	WPW10136707		Top (white)   (Replaces: W10136707)				$ 320.56
26	W11170663		Washer, Lock   (Replaces: W10068270)				$ 3.89
27	WPW10137319		Bolt, Hex Bar   (Replaces: W10137319)				$ 73.17
28	WPW10247389		Coin Optic Sensor Assembly (white)   (Replaces: W10247389)			Immediately	$ 104.31
29	WP3395530		Screw   (Replaces: W10142655)				$ 6.93
30	W11283272		Assembly, Service Door   (Replaces: W11269277)				$ 95.29
31	WPW10131838		Switch, Vault Service Door   (Replaces: W10131838)				$ 21.52
32	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
33	W11096090		Harness, Wire (service Switch)   (Replaces: W10211244)				$ 11.48
34	WPW10139210		Screw   (Replaces: W10139210)				$ 6.75
35	3347825		Plate, Mounting		Appelez-nous	-
36	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
37	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 27.99
38	WPW10131839		Transformer   (Replaces: W10131839)			Immediately	$ 120.20
39	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
40	W11114146		Harness, Main		Appelez-nous	-
	W11696096		Installation Instructions		Appelez-nous	-
	W11692451		Tech Sheet		Appelez-nous	-
