Burner Box Parts
Chassis Parts
Cooktop, Burner And Grate Parts
Internal Oven Parts
Optional Parts (not Included)
Oven Door Parts
Oven Parts
Venting Parts
SELECT A DIAGRAM
New Model Search:

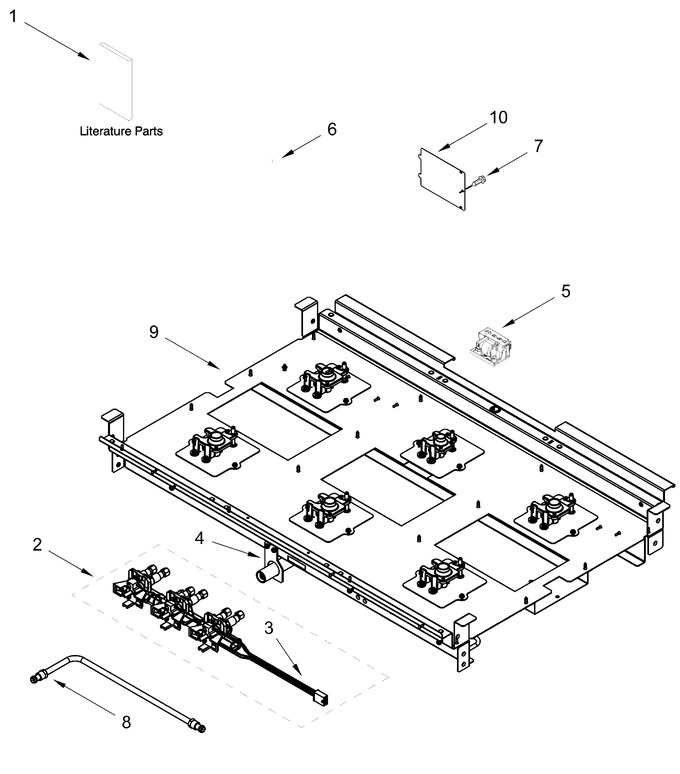

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11384736 | Valve Manifold Assembly (Replaces: W10892995) |
|
Immediately | $ 343.29 | ||||
| 3 | W10903729 | Switch, Harness |
|
Immediately | $ 172.57 | ||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 71.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 73.44 | ||||
| 6 | 4453116 | Adapter, Male |
|
$ 161.49 | |||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11335267 | Tube, Manifold Supply (Replaces: W10892073) |
|
- | |||||
| 9 | ARIDBAA9548A1EB15B27ADE369B6B57A1AD | Box, Burner (not Serviced) |
|
- | |||||
| 10 | W10115843 | Cover, Ignition |
|
- | |||||
| W11502161 | Kit, Lp Conversion (Replaces: W11238042) |
|
Immediately | $ 71.29 | |||||
| 7101P48560 | Screw, Anti-tip Kit |
|
- | ||||||
| W11200332 | Harness, Cooktop |
|
$ 176.09 | ||||||
| W11200303 | Harness, Main (36 In) |
|
$ 221.69 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| ARI55C06F183F5209A80F64451115E0C931 | (left) |
|
- | ||||||
| ARIA67675F677EBF4F21732844667A34174 | (center Front, Right Front, Right Rear) |
|
- | ||||||
| W11384739 | Valve Manifold Assembly (Replaces: W10893005) |
|
Immediately | $ 343.29 | |||||
| ARI2169B97BF20A354D7DD745BC3DBD5C8C | (left Front, Left Rear, Center Rear) |
|
- | ||||||
| W11114332 | Guide, Quick Start |
|
- | ||||||
| W11565460 | Wiring Diagram (oven) |
|
- | ||||||
| W11508932 | Wiring Diagram (cooktop) |
|
- | ||||||
| W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 53.89 | ||||||
| W11184759 | Guide, Internet Connectivity |
|
- | ||||||
| W11508889 | Installation Instructions |
|
- | ||||||
| W11508897 | Owner's Manual |
|
- | ||||||
| ARI97EE49875860764C24B1F1C761487B6B | (right) |
|
- | ||||||
| W11384740 | Tube, Manifold Supply (Replaces: W10892334) |
|
- | ||||||
| 4450800 | Screw, Grounding |
|
$ 12.12 | ||||||
| WP9759877 | Retainer, Strain Relief (Replaces: 9759877) |
|
$ 18.19 | ||||||
| W11321066 | Cord, Power (Replaces: W11212216) |
|
$ 107.05 | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | ||||||
| W11317791 | Harness, Wifi (Replaces: W11242785) |
|
$ 102.35 | ||||||
| W11200325 | Harness, Communication |
|
$ 104.57 | ||||||
| W10780278 | Harness, Door Lock |
|
Immediately | $ 86.28 |
