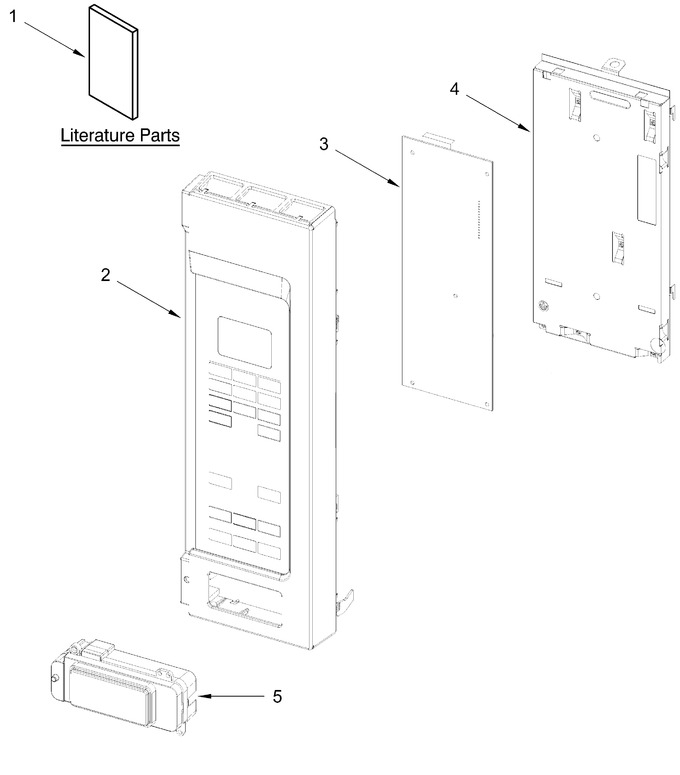

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11678581 | Control Panel Assembly (stainless) (Replaces: W11386251) |
|
Immediately | $ 279.49 | ||||
| 3 | W11552024 | Appliance Control Unit (Replaces: W11392726) |
|
Immediately | $ 83.39 | ||||
| 4 | W11676791 | Backer, Control (Replaces: W10833365) |
|
$ 48.91 | |||||
| 5 | W11386324 | Push Button Assembly (stainless) |
|
- | |||||
| W11561755 | Tech Sheet |
|
- | ||||||
| W11199603 | Installation Instructions |
|
- | ||||||
| W10918347 | Use And Care Guide |
|
- |
