Basket And Tub Parts


Controls And Water Inlet Parts


Gearcase, Motor And Pump Parts


Optional Parts (not Included)


Top And Cabinet Parts

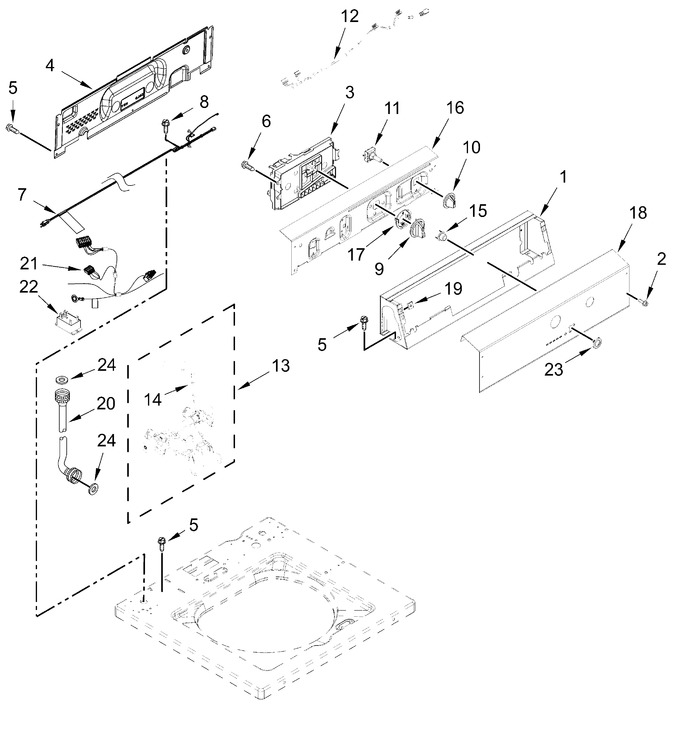

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11124005		Console				$ 204.36
2	WPW10131119		Screw   (Replaces: W10131119)				$ 6.26
3	W11831578		Control Unit Assembly, Machine & Motor   (Replaces: W11298479)			Immediately	$ 272.77
4	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 308.94
5	W11685943		Screw   (Replaces: W10660565)				$ 12.83
6	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.04
7	W11676810		Cord, Power   (Replaces: W10916256)				$ 58.58
8	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 6.98
9	W10461101		Assembly, Timer Knob (grey)				$ 43.21
10	W10461100		Knob/bumper Assembly (grey)				$ 19.21
11	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 105.68
12	W11752208		Harness, Upper E-star   (Replaces: W10694672)				$ 18.73
13	W11205048		Inlet Assembly, Water   (Replaces: W10843663)			Immediately	$ 138.32
14	W10843398		Harness, Valve				$ 127.12
15	WPW10461117		Push Button, Start   (Replaces: W10461117)				$ 62.01
16	W10461066		Bracket, Back		Appelez-nous	-
17	W10828903		Insert, Encoder Stop (7 Position)		Appelez-nous	-
18	W11089512		Fascia   (Replaces: W10829501)		Appelez-nous	-
19	WPW10131123		U-nut   (Replaces: W10131123)				$ 6.94
20	W11085908		Inlet Hose (cold Water)   (Replaces: W10852720)			Immediately	$ 44.33
21	W11736785		Harness, Upper   (Replaces: W10843661)			Immediately	$ 132.20
22	W11384790		Relay   (Replaces: W11032871)			Immediately	$ 67.27
23	W10510149		Bezel - Pts			Immediately	$ 24.54
24	WP16123		Washer, Hose   (Replaces: W10242307)				$ 6.93
	W11085908		Inlet Hose (hot Water)   (Replaces: W10852721)			Immediately	$ 44.33

    View Diagram in Separate Window       Print Part List
