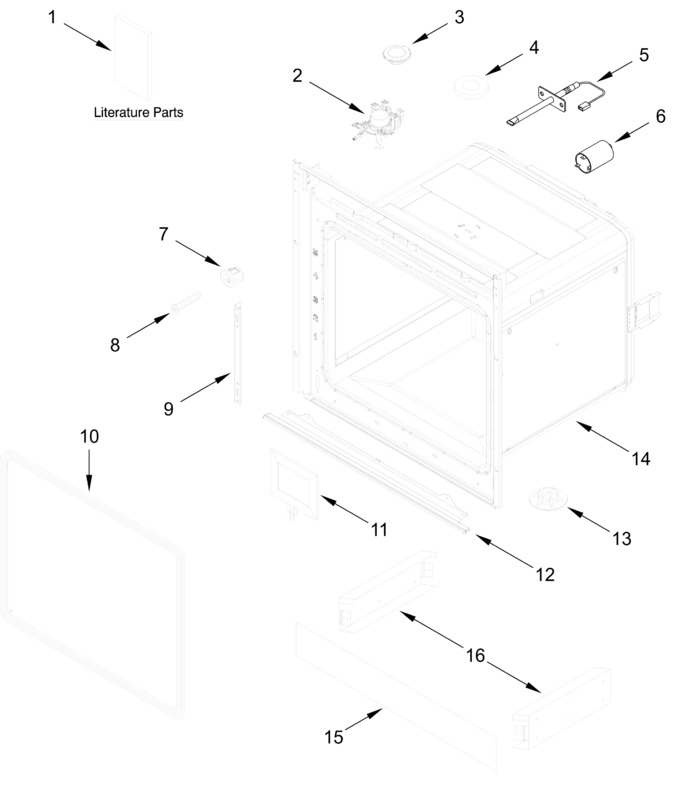

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Control Panel Parts
Internal Oven Parts
Oven Door Parts
Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11760809 | Latch, Door (Replaces: W11760609) |
|
- | |||||
| 3 | W11509867 | Cap |
|
- | |||||
| 4 | W11594958 | Washer, Teflon (Replaces: W11594218) |
|
- | |||||
| 5 | W11790987 | Probe, Oven Temperature (Replaces: W11747325) |
|
$ 138.98 | |||||
| 6 | W10549523 | Filter, Line Noise |
|
Immediately | $ 133.37 | ||||
| 7 | W10578780 | Bumper |
|
$ 20.04 | |||||
| 8 | W10519818 | Kit, Oven Screws |
|
$ 13.42 | |||||
| 9 | W11581007 | Hinge, Running Mechanism |
|
- | |||||
| 10 | W10518387 | Gasket, Door |
|
$ 158.97 | |||||
| 11 | W11348087 | Lamp, Halogen 25 Watt (with Gasket) |
|
$ 108.06 | |||||
| 12 | W10517979 | Trim, Lower (stainless) |
|
Immediately | $ 59.66 | ||||
| 13 | W10545973 | Foot, Level Oven |
|
- | |||||
| 14 | ARIF1DCB018B2324CAD9D04009CD738647B | Liner, Oven (not Serviceable) |
|
- | |||||
| 15 | W11594963 | Panel, Insert (white) (Replaces: W11594217) |
|
- | |||||
| 16 | W11594960 | Bracket, Panel (Replaces: W11594209) |
|
- | |||||
| W11594182 | Harness, Main |
|
$ 332.95 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11348047 | Kit, Power Cord (no Plug) |
|
$ 143.79 | ||||||
| W11508845 | Use And Care Guide |
|
- | ||||||
| W11508921 | Installation Instructions |
|
- | ||||||
| W11594210 | Screw Kit, Trim Panel |
|
Immediately | $ 51.33 | |||||
| W11568131 | Sheet,tech |
|
- |
