SELECT A DIAGRAM

Air Flow Parts


Cabinet And Installation Parts


Control Panel Parts


Door And Vent Door Parts


Interior And Ventilation Parts

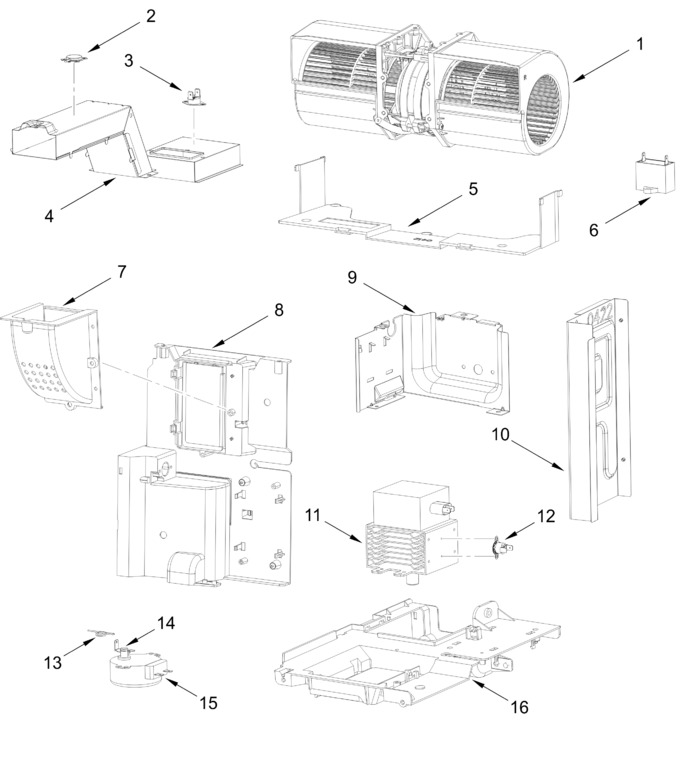

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11662632		Motor, Hood Fan   (Replaces: W11409098)				$ 136.16
2	W10557536		Sensor, Humidity				$ 109.12
3	W11661583		Thermostat, Cavity   (Replaces: W10654514)				$ 54.26
4	W11666236		Channel, Cavity Outlet   (Replaces: W11662389)		Appelez-nous	-
5	W11662643		Cover, Bottom Fan   (Replaces: W11586592)		Appelez-nous	-
6	W11405830		Capacitor, Hood Motor		Appelez-nous	-
7	W11662646		Air Channel, Transformer   (Replaces: W11586583)				$ 49.36
8	W11662679		Air Channel, Magnetron   (Replaces: W11586582)		Appelez-nous	-
9	W11586584		Channel, Right Hood		Appelez-nous	-
10	W11662662		Air Channel, Back   (Replaces: W11586581)		Appelez-nous	-
11	W11391712		Magnetron   (Replaces: W10836571)			Immediately	$ 153.97
12	W11443128		Thermostat, Magnetron   (Replaces: W11378280)				$ 16.80
13	W11662717		Spring, Antenna   (Replaces: W11593237)				$ 35.94
14	W11662715		Bracket, Stirring Antenna   (Replaces: W11591195)				$ 20.18
15	W11590176		Motor, Stirring				$ 36.20
16	W11662695		Plate, Magnetron Support   (Replaces: W11586580)				$ 52.49

    View Diagram in Separate Window       Print Part List
