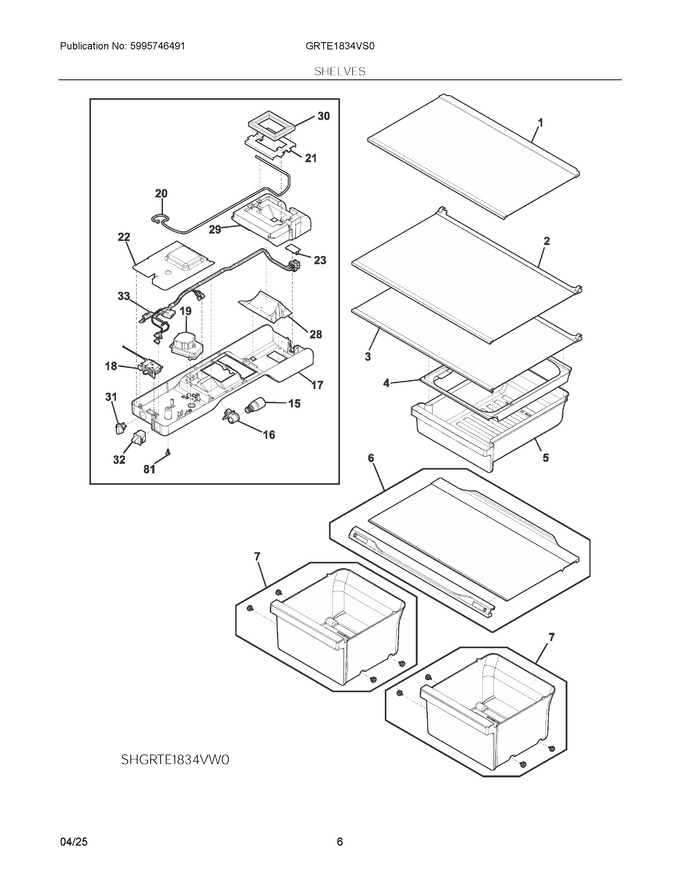

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304535387		Shelf Assembly, Freezer, Glass, W/trim   (Replaces: 5304519660)			Immediately	$ 71.94
2	5304537430		Shelf Assembly, Refrigerator, Glass, W/trim Br30cd			Immediately	$ 130.63
3	5304537431		Shelf Assembly, Refrigerator, Glass, Deli Drawer, W/trim 18'cd			Immediately	$ 134.86
4	5304522177		Carriage, Deli Drawer			Immediately	$ 27.50
5	5304538632		Drawer, Deli, Half Width				$ 41.82
6	5304534981		Cover Assembly, Crisper, Glass, W/trim   (Replaces: 5304519729)			Immediately	$ 49.27
7	5304519801		Pan Assembly, Crisper, W/sliders			Immediately	$ 85.17
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 40.19
16	5304530650		Socket, Led Light			Immediately	$ 10.01
17	5304522329		Housing, Control Box			Immediately	$ 105.42
18	5304522330		Cold Control, Assembly, W/capillary			Immediately	$ 74.65
19	5304526183		Timer, Defrost   (Replaces: 5304522331)			Immediately	$ 67.00
20	5304522332		Tubing, Capillary, Plastic				$ 8.34
21	5304522333		Plate, Diffuser				$ 22.75
22	5304536267		Shield, Electrical, Front		Appelez-nous	-
23	5304522335		Shield, Electrical, Rear				$ 8.34
28	5304522317		Diffuser, Control Box, Bottom				$ 16.74
29	5304522336		Diffuser, Control Box, Top				$ 16.74
30	5304520493		Seal, Air Duct, Top			Immediately	$ 18.20
31	5304522337		Knob, Control				$ 7.59
32	140118119027		Switch, Door/light, White   (Replaces: 5304520495)			Immediately	$ 4.35
33	5304522338		Harness, Wiring, Control Box				$ 67.55
81	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.03
