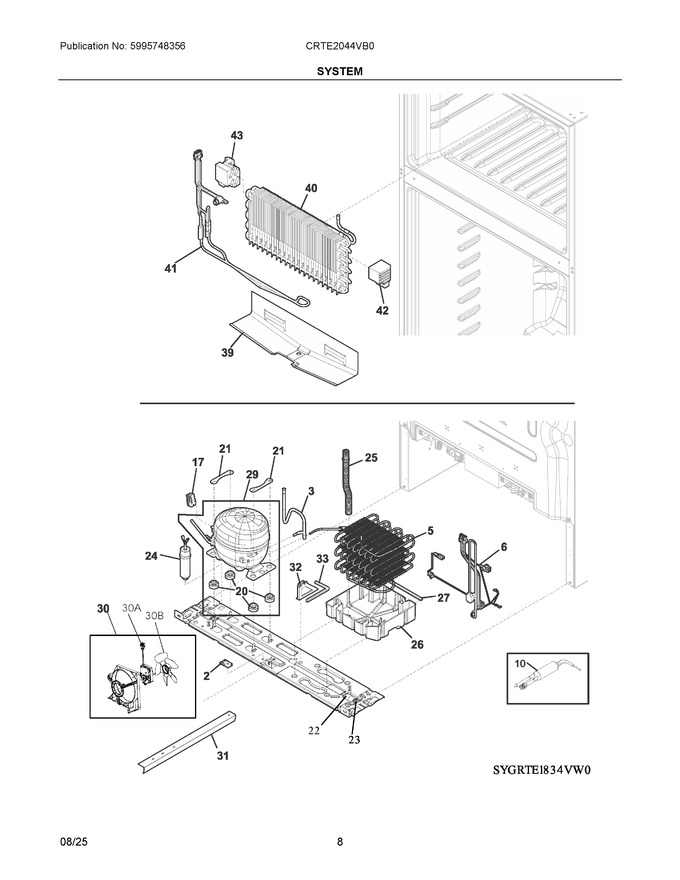

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304456288		Clamp, Wiring Harness, Galv Steel, Strn Relief		Appelez-nous	-
3	5304537689		Tube-suction, Jumper			Immediately	$ 25.38
5	5304530007		Condenser, Dynamic			Immediately	$ 87.62
6	5304519649		Harness, Wiring, Machine Compt.			Immediately	$ 98.87
10	A19676501		Filter, Drier, Service			Immediately	$ 99.73
17	5304536666		Starter			Immediately	$ 25.63
20	5304522323		Grommet, Compressor				$ 38.68
21	5304524607		Clamp, Compressor				$ 2.89
22	140140613013		Roller, Rear, Hinge, Bottom		Appelez-nous	-
23	140192992018		Shaft, Roller		Appelez-nous	-
24	297286812		Capacitor Run, 12uf			Immediately	$ 11.78
25	5304519743		Tube, Drain Extension			Immediately	$ 8.34
26	5304519674		Pan, Drain				$ 39.47
27	5304519750		Seal, Foam, Drain Pan				$ 2.62
29	5304538118		Compressor Assembly, Esx55cbc Gen2 Mx   (Replaces: 5304537774)			Immediately	$ 179.62
30	5304519734		Fan Assembly, Condenser, W/shroud-foam			Immediately	$ 156.99
31	5304524032		Baffle, Divider, High Side		Appelez-nous	-
32	5304519745		Baffle, Drain Pan, Air Block				$ 7.80
33	5304519751		Seal, Foam, Air Block				$ 3.08
39	5304519679		Trough, Evap Drain				$ 57.64
40	5304522324		Evaporator, 8 Mm   (Replaces: 140148637014)			Immediately	$ 150.10
41	5304522340		Heater, Evap Defrost, W/thermostat			Immediately	$ 88.79
42	5304522326		Support, Evaporator, Rh				$ 7.59
43	5304522327		Support, Evaporator, Lh				$ 7.59
45	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
30A	5304539496		Motor, Condenser Fan   (Replaces: 5304531260)				$ 56.33
30B	8582416395027		Blade, Condenser Fan		Appelez-nous	-
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
