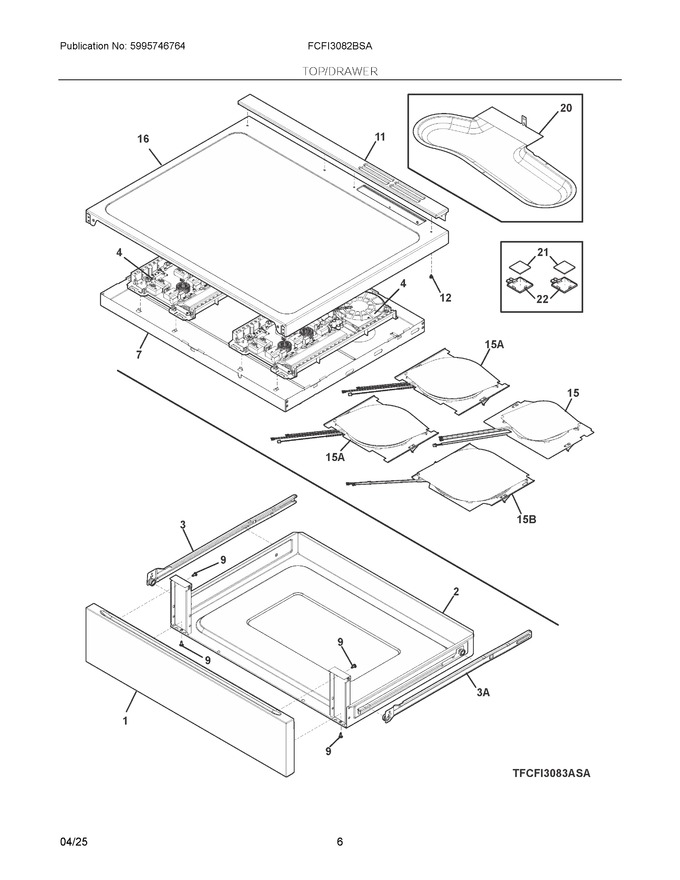

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526300		Panel, Drawer, Stainless, Outer				$ 103.34
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 154.85
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
4	5304535093		Control Module, Induction, King Tiger			Immediately	$ 157.88
7	140172174066		Burner Box, Smoothtop   (Replaces: 5304528646)		Appelez-nous	-
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
11	5304528290		Trim, Vent, Black			Immediately	$ 77.90
12	5304533410		Screw, M4.2x7x1.06, Black		Appelez-nous	-
15	387404760		Element Assembly, Induction Coil, 140mm			Immediately	$ 86.82
16	140166975189		Panel, Smoothtop, Assembly				$ 251.29
20	5304528601		Duct, Air Intake, Induction		Appelez-nous	-
21	357252801		Shielding, Ferrite Bar		Appelez-nous	-
22	5304533467		Bracket, Ferrite Shield		Appelez-nous	-
15A	387404870		Element Assembly, Induction Coil, 180mm			Immediately	$ 84.96
15B	387761249		Element Assembly, Induction Coil, 210mm			Immediately	$ 106.18
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304533468		Harness, Wiring, Ferrite Ground				$ 26.75
NI	5304533452		Harness, Wiring, Cooktop, Power				$ 79.59
NI	5304533430		Harness, Wiring, Induction Power				$ 89.91
