SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

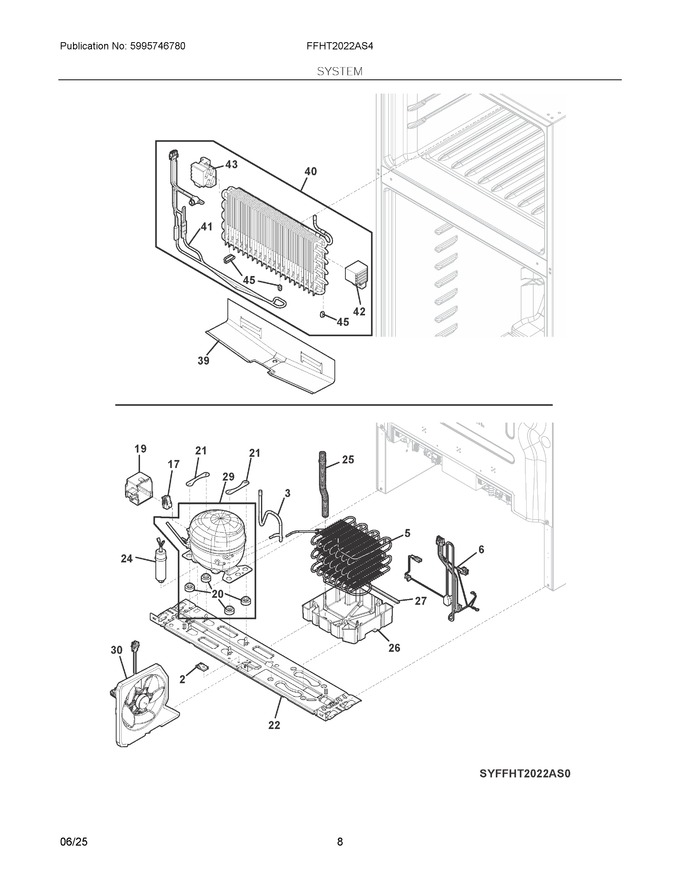

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304456288		Clamp, Wiring Harness, Galv Steel, Strn Relief		Appelez-nous	-
3	5304537689		Tube-suction Jumper Es Comp			Immediately	$ 25.38
4	A19676501		Dryer Assembly, Filter   (Replaces: 5304522277)			Immediately	$ 99.73
5	5304530007		Condenser, Dynamic			Immediately	$ 87.62
6	5304519649		Harness, Wiring, Machine Compt.			Immediately	$ 98.87
17	5304529285		Starter, Compressor, Tsd 2.1			Immediately	$ 72.05
19	5304528888		Cover, Electricals, Compressor				$ 21.59
20	5304522323		Grommet, Compressor				$ 38.68
21	5304524607		Clamp, Compressor				$ 2.89
22	5304519667		Base Assembly, Compressor, W/rollers			Immediately	$ 64.46
24	5304528894		Capacitor, Run, 12uf			Immediately	$ 38.96
25	5304519743		Tube, Drain Extension			Immediately	$ 8.34
26	5304519674		Pan, Drain				$ 39.47
27	5304519750		Seal, Foam, Drain Pan				$ 2.62
29	5304537795		S/a Pur Comp Esc55cbt Gen2 Mx			Immediately	$ 186.25
30	5304519734		Fan Assembly, Condenser, W/shroud-foam			Immediately	$ 156.99
39	5304519679		Trough, Evap Drain				$ 57.64
40	4056037197		Evaporator, Assembly   (Replaces: 5304529495)		Appelez-nous	-
41	5304522340		Heater, Evap Defrost, W/thermostat			Immediately	$ 88.79
42	5304522326		Support, Evaporator, Rh				$ 7.59
43	5304522327		Support, Evaporator, Lh				$ 7.59
45	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17

    View Diagram in Separate Window       Print Part List
