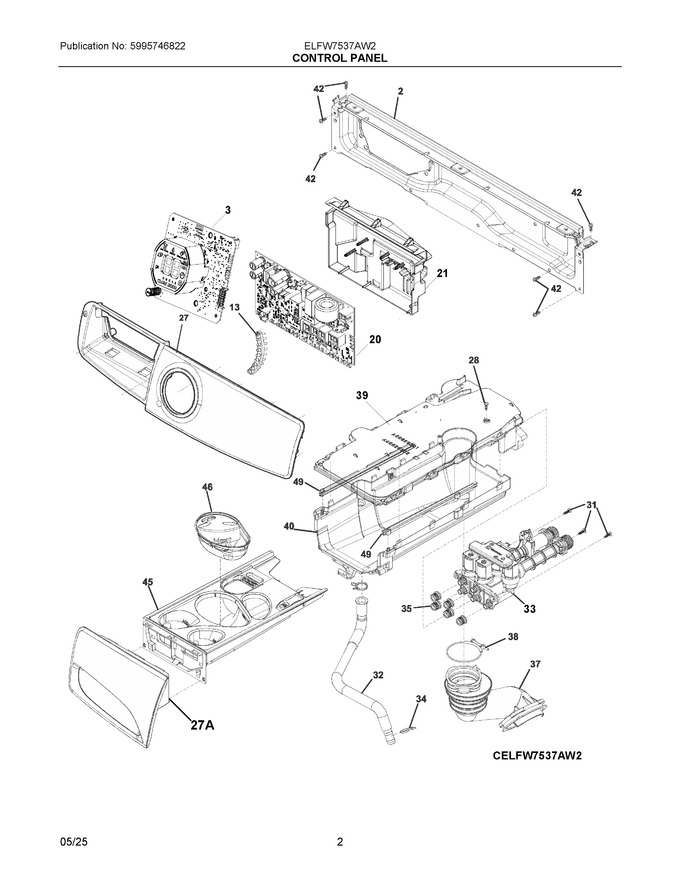

02 - Control Panel
03 - Cabinet/top
04 - Motor/tub
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304505086 | Bracket, Control Panel |
|
$ 70.85 | |||||
| 3 | 140203381078 | Knob Assembly, Complete, W/boards |
|
$ 137.55 | |||||
| 13 | 5304529751 | Diffuser, Light |
|
$ 15.18 | |||||
| 17 | 5304505436 | Sensor Switch, Pressure |
|
Immediately | $ 51.64 | ||||
| 21 | 5304505173 | Housing, Control Board, Main |
|
$ 18.60 | |||||
| 27 | 5304529896 | Console Assembly, W/overlay |
|
$ 160.68 | |||||
| 28 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 32 | 134625500 | Hose, Disp-to-bellows |
|
$ 87.17 | |||||
| 33 | 5304528029 | Valve Assembly, Vortex, W/flow Meter |
|
Immediately | $ 197.38 | ||||
| 34 | 5304464772 | Cable Tie, 5.60 Inch, Plastic (Replaces: 5303321209) |
|
$ 10.63 | |||||
| 35 | 134371300 | Gasket, Disp-to-valve |
|
Immediately | $ 51.04 | ||||
| 37 | 134625700 | Hose, Disp-to-tub |
|
Immediately | $ 72.72 | ||||
| 38 | 134372400 | Clamp, Tub Hose |
|
$ 64.49 | |||||
| 39 | 5304537814 | Housing, Assembly, Conveyor |
|
Immediately | $ 54.77 | ||||
| 40 | 5304514782 | Housing, Dispenser, Lower |
|
Immediately | $ 64.34 | ||||
| 42 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 45 | 5304514792 | Drawer Assembly, Dispenser |
|
Immediately | $ 104.69 | ||||
| 46 | 5304514801 | Cup Assembly, Dispenser, Liquid, W/cover |
|
Immediately | $ 91.09 | ||||
| 49 | 5304514781 | Slider, Drawer, Dispenser |
|
Immediately | $ 84.59 | ||||
| 20A | 5304538848 | Main Board, Assembly, W/housing |
|
Immediately | $ 148.54 | ||||
| 27A | 5304529895 | Handle Assembly, Drawer, W/overlay |
|
Immediately | $ 103.55 | ||||
| NI | 134178901 | Screw, 8-18ab X 0.455 |
|
$ 14.89 | |||||
| NI | 5304528020 | Cable Tie, Push Mount |
|
$ 9.41 | |||||
| NI | 5304522539 | Harness, Wiring, Main, W/drum Light |
|
Immediately | $ 177.70 | ||||
| NI | 5304514820 | Screw, Quad, #8-18 X .625 |
|
$ 2.89 | |||||
| NI | 137087000 | Screw, Comb Pnhd B, #10-16x.75, (9) |
|
Immediately | $ 11.34 | ||||
| NI | 5304510114 | Cable, Grounding, To Cabinet, Main Board |
|
$ 17.78 | |||||
| NI | 131302800 | Screw, Quadrex Ph, 10-16ab X 0.5 |
|
Immediately | $ 26.58 | ||||
| NIA | 134629400 | Screw, Mc5x8.5 Torx, Cabinet Mtg |
|
$ 12.76 | |||||
| NIA | 5304529693 | Gasket, Console |
|
$ 9.50 | |||||
| NIA | 134407900 | Dampener, Vibration |
|
$ 17.01 |
