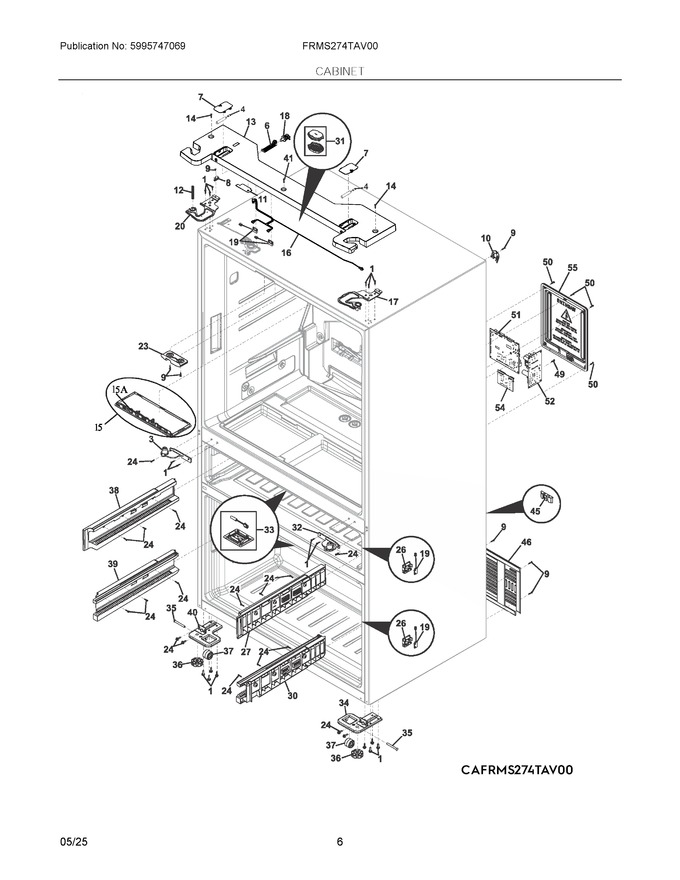

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.31
3	5304519085		Hinge, Center, Lh		Appelez-nous	-
4	5304532659		Damper, Soft Close				$ 26.80
6	5304529582		Cover, Trigger, Eyebrow, Soft Close				$ 7.96
7	5304529583		Cover, Eyebrow, Soft Close			Immediately	$ 7.44
8	240396803		Clamp, Tube/wiring, 5/16				$ 7.59
9	811949503		Screw, Truss, 4.2 X 13				$ 3.03
10	5304519086		Cover, Inlet Tube, Rear		Appelez-nous	-
11	5304529578		Shield, Eyebrow		Appelez-nous	-
12	5304519067		Spring, Tube Protection			Immediately	$ 10.62
13	5304536151		Cover, Eyebrow, Grey				$ 38.12
14	5304519089		Screw, Self-tapping, M5 X 0.8				$ 6.07
15	5304530715		Light Assembly, Led, Single, W/lens   (Replaces: 5304538935)			Immediately	$ 75.83
16	5304538943		Harness, Wiring, Eyebrow		Appelez-nous	-
17	5304536152		Hinge, Top, Rh				$ 27.34
18	5304519093		Switch, Light, Gray				$ 31.86
19	5304532559		Switch, Door Reed				$ 19.57
20	5304536153		Hinge, Top, Lh				$ 19.11
23	5304534873		Guide Assembly, Flip Mullion, Base				$ 16.32
24	5304519098		Screw, Trilob, M4 X 12				$ 3.03
26	5304519100		Cover, Reed Switch				$ 7.96
27	5304534872		Support, Drawer Slide, Rh				$ 46.46
30	5304534871		Support, Drawer Slide, Lh				$ 45.87
31	5304537037		Housing, Connector, Eyebrow		Appelez-nous	-
32	5304519104		Hinge, Middle, Rh				$ 56.88
33	5303918850		Thermistor Kit, Temperature, W/housing				$ 44.94
34	5304519105		Bracket, Leveling Foot, Rh				$ 58.35
35	811998302		Shaft, Cabinet Roller				$ 10.62
36	5304519106		Foot, Leveling, Stabilizer				$ 17.44
37	811666601		Roller, Cabinet				$ 9.10
40	5304519109		Bracket, Leveling Foot, Lh				$ 57.64
41	5304526847		Screw, Tri Lobe, M4 X 6		Appelez-nous	-
45	5304519111		Clip, Tube, Rear				$ 8.34
46	140040610028		Cover, Machine Compt., Rear   (Replaces: 5304519112)		Appelez-nous	-
49	519092015		Screw, 4, 8x16 Ph		Appelez-nous	-
50	5304523032		Screw, Trilob, M4 X 7.5		Appelez-nous	-
51	5304535682		Pc Board, Control, Main			Immediately	$ 684.80
52	5304526795		Pc Board, Power Supply			Immediately	$ 309.66
54	5304519115		Pc Board, Ac Line Filter, Emc			Immediately	$ 247.43
55	5304519117		Cover, Assembly, Pcb Box		Appelez-nous	-
15A	5304524650		Pc Board, Led Polaris, 6500k				$ 56.12
NI	240396801		Clamp, Tube/wiring, 1/2", Nylon, Black/natural				$ 19.13
NI	241641505		Screw, Hilo Phil Pn, .5", White		Appelez-nous	-
NI	5304526848		Screw, Self Tapping, 4.2 X 13		Appelez-nous	-
NIA	5304519116		Harness, Wiring, Power Supply				$ 19.36
