SELECT A DIAGRAM

01 - Cover

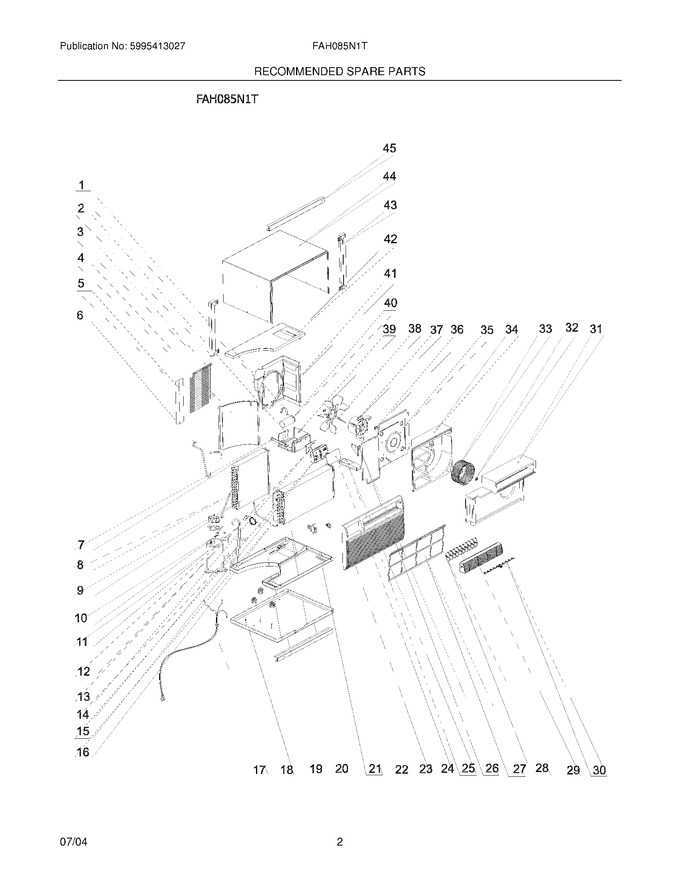

03 - Recommended Spare Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303077		Strap,capacitor Mtg.		Appelez-nous	-
3	309636101		Screen,safety ,wire Mesh ,cabinet Rear		Appelez-nous	-
4	309629001		Partition,shroud,galv-steel		Appelez-nous	-
5	309335201		Baffle-air		Appelez-nous	-
7	309203101		Support,control Box		Appelez-nous	-
15	309200201		Enclosure,input Pcb ,control Panel				$ 19.99
18	309632007		Base,compressor Mt. ,with Studs		Appelez-nous	-
19	309628705		Tray,evap Base		Appelez-nous	-
21	5308017123		Holder,thermistor Clip ,3/8 Inch ,with Seal		Appelez-nous	-
22	309205001		Clip,filter ,deflector		Appelez-nous	-
23	309200101		Panel,front Grille		Appelez-nous	-
24	309201401		Overlay,control Display				$ 28.32
26	309335001		Baffle-splash/motor		Appelez-nous	-
27	309628204		Filter,air ,molded Plastic ,grey				$ 47.09
28	309628104		Louver-vertical				$ 4.41
29	309628004		Louver,horizontal		Appelez-nous	-
30	309324004		Link,vertical Louver ,with Handle		Appelez-nous	-
31	309622901		Plate,scroll Cover		Appelez-nous	-
32	309112101		Clamp,blower Wheel Mt ,compression		Appelez-nous	-
33	309631701		Blower Wheel				$ 19.90
34	309622801		Housing,blower Scroll				$ 56.28
35	309627401		Bulkhead		Appelez-nous	-
36	309111201		Grommet,wire Protector		Appelez-nous	-
39	309200301		Control Box		Appelez-nous	-
41	309628901		Shroud,fan		Appelez-nous	-
42	309628802		Cover,fan ,top		Appelez-nous	-
43	309628603		Trim,frame ,side		Appelez-nous	-
44	309627504		Cabinet,wrapper		Appelez-nous	-
45	309628604		Trim,frame ,top & Bottom				$ 15.07
F10	309205101		Overload Protector		Appelez-nous	-
F11	309260301		Compressor Assembly,w/electricals ,115 V,& Mtg Grommets		Appelez-nous	-
F12	309201302		Pc Board,input/display ,115 V				$ 186.69
F13	309372301		Tube,capillary		Appelez-nous	-
F14	309202201		Tube,suction		Appelez-nous	-
F16	309337001		Tube,anti Gurgle		Appelez-nous	-
F17	309343108		Power Cord,electric ,16 Awg ,115 V ,type A		Appelez-nous	-
F2	309201003		Pc Board,power ,115 V				$ 39.43
F20	309641901		Condenser		Appelez-nous	-
F25	309342611		Remote Control,transmitter ,with Batteries		Appelez-nous	-
F37	309647503		Motor,fan ,3 Speed				$ 131.88
F38	309629102		Fan Blade		Appelez-nous	-
F40	5304426336		Capacitor,250 V ,35+10 Mfd		Appelez-nous	-
F6	309202101		Tube,discharge		Appelez-nous	-
F8	5304413933		Tube,process ,cond. Outlet		Appelez-nous	-
F9	309632303		Evaporator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
