View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

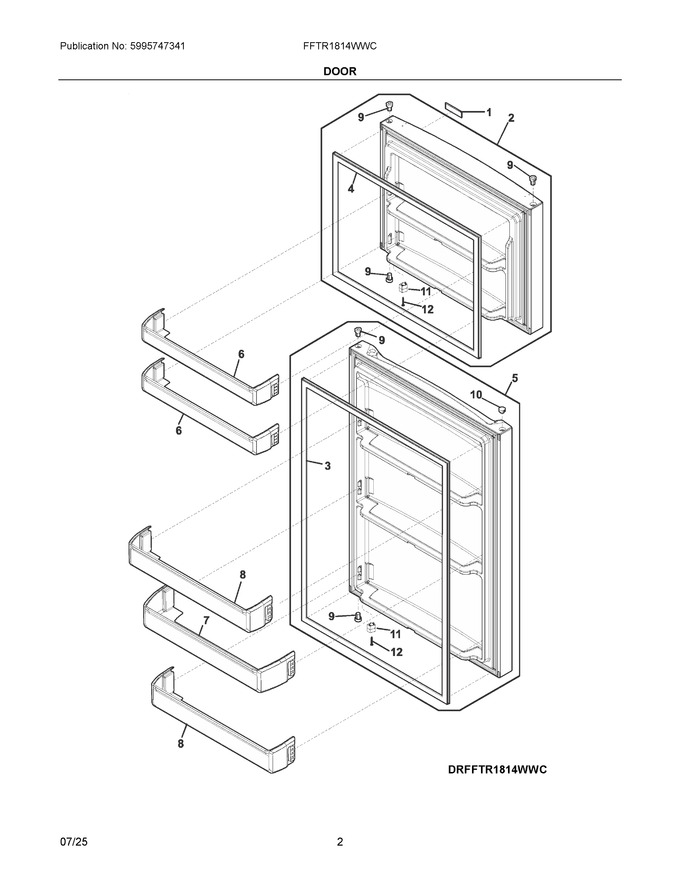

01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511144 | Badge, Frigidaire, White |
|
Immediately | $ 4.55 | ||||
| 2 | 5304530029 | Door Assembly, Freezer |
|
Immediately | $ 213.64 | ||||
| 3 | 5304528903 | Gasket, Door, Gray, Fresh Food |
|
Immediately | $ 205.12 | ||||
| 4 | 5304528904 | Gasket, Door, Gray, Freezer |
|
Immediately | $ 180.01 | ||||
| 5 | 140210779231 | Door Assembly, Fresh Food (Replaces: 5304530023) |
|
Immediately | $ 197.17 | ||||
| 6 | 5304519702 | Bin, Door, White, Freezer |
|
Immediately | $ 50.63 | ||||
| 7 | 5304522123 | Bin, Door, 6", White, Refrigerator |
|
Immediately | $ 70.75 | ||||
| 8 | 5304519703 | Bin, Door, 4", White, Refrigerator |
|
Immediately | $ 22.42 | ||||
| 9 | 5304519757 | Bearing, Hinge, White |
|
Immediately | $ 7.30 | ||||
| 10 | 5304519747 | Cover, Hinge Bearing, White |
|
$ 2.98 | |||||
| 11 | 5304536276 | Stopper, Door, White |
|
Immediately | $ 3.77 | ||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 |
