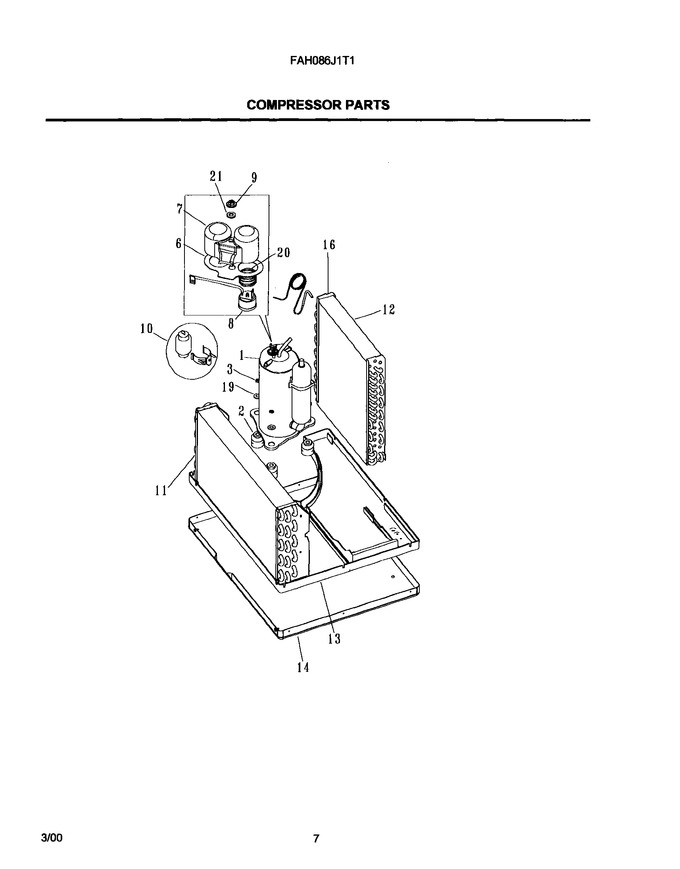

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet-compressor |
|
- | |||||
| 3 | 5308006948 | Nut - Compressor |
|
- | |||||
| 6 | 5303002035 | Gasket-cover |
|
- | |||||
| 7 | 3002034 | Cover-terminal |
|
- | |||||
| 9 | 5303301734 | Nut-cover |
|
- | |||||
| 13 | 309628703 | Tray Base |
|
- | |||||
| 14 | 309632004 | Assy-base/stud |
|
- | |||||
| 17 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 19 | 5303002664 | Washer - Compressor |
|
- | |||||
| 20 | 5303002036 | Spring-overload |
|
- | |||||
| 21 | 5303295516 | Washer-cover |
|
- | |||||
| F1 | 5303300200 | Compressor Matsushita |
|
- | |||||
| F11 | 309632303 | Evaporator-assy,2rw/17fpi |
|
- | |||||
| F12 | 309632503 | Cond Assy-3rw/15fpi |
|
- | |||||
| F16 | 5303209547 | Capillary Tube |
|
- | |||||
| F8 | 5303211026 | Overload-mra 98706-694 |
|
$ 136.71 |
