New Model Search:

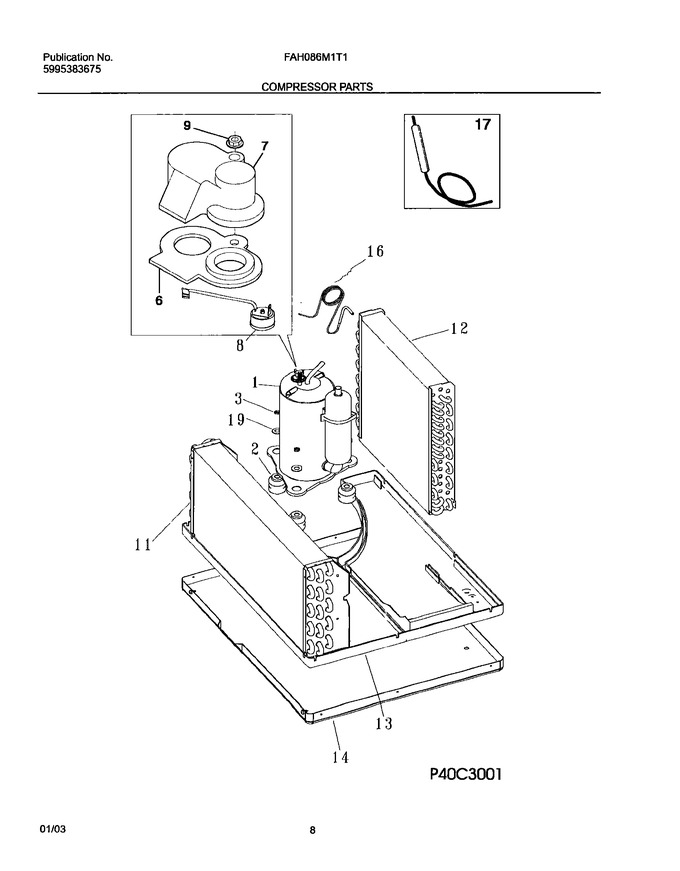

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 3201668 | Gasket - Terminal Cover |
|
- | |||||
| 7 | 5304405245 | Cover,compr Terminal |
|
- | |||||
| 9 | 3201670 | Nut,terminal Cover |
|
- | |||||
| 12 | 309641901 | Condenser |
|
- | |||||
| 13 | 309628705 | Tray-base |
|
- | |||||
| 14 | 309632006 | Base,compressor Mt. ,with Studs |
|
- | |||||
| 19 | 309112501 | Washer,metallic |
|
- | |||||
| F1 | 309616919 | Compressor |
|
$ 441.84 | |||||
| F11 | 309632303 | Evaporator |
|
- | |||||
| F16 | 3019025 | Tube,capillary ,.10 X .05 X 40 |
|
- | |||||
| F17 | 5300265301 | Drier-filter,service Kit |
|
$ 284.30 | |||||
| F8 | 5303317553 | Overload Protector |
|
- |
