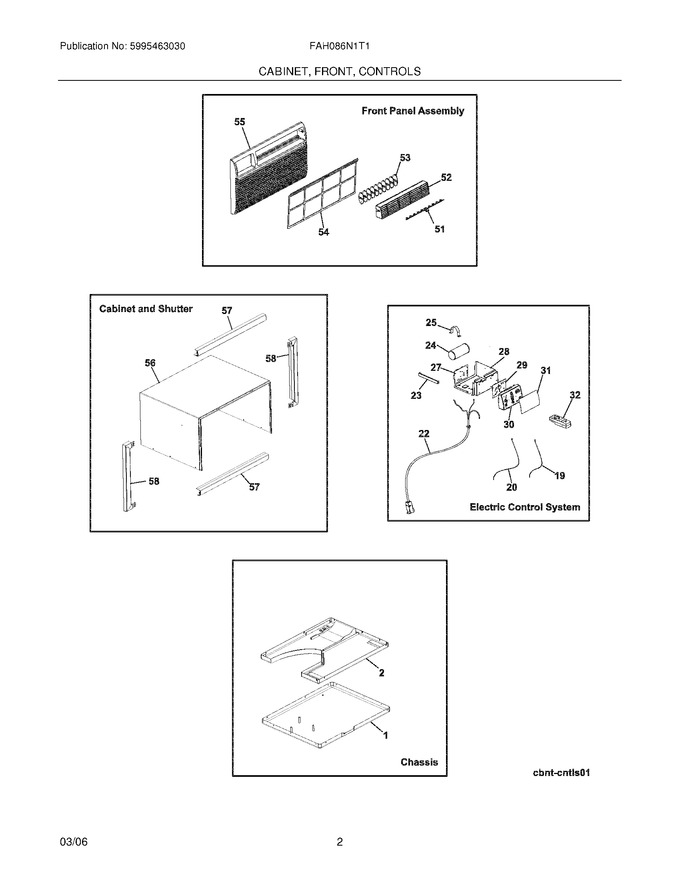

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309632007		Base,compressor Mt. ,with Studs		Appelez-nous	-
2	309628705		Tray,evap Base		Appelez-nous	-
23	309203101		Support,control Box		Appelez-nous	-
28	309200301		Control Box		Appelez-nous	-
30	309200201		Enclosure,input Pcb ,control Panel				$ 19.99
31	309201405		Overlay,control Display		Appelez-nous	-
51	309324004		Link,vertical Louver ,with Handle		Appelez-nous	-
52	309628004		Louver,horizontal		Appelez-nous	-
53	309628104		Louver-vertical				$ 4.41
54	309628204		Filter,air ,molded Plastic ,grey				$ 47.09
55	309200101		Panel,front Grille		Appelez-nous	-
56	309627504		Cabinet,wrapper		Appelez-nous	-
57	309628603		Trim,frame ,side		Appelez-nous	-
58	309628604		Trim,frame ,top & Bottom				$ 15.07
F19	309201603		Sensor,thermistor ,evap Defrost				$ 33.39
F20	309201602		Sensor,thermistor ,ambient Temp				$ 39.06
F22	309343127		Power Cord,lcdi-type A ,16 Awg ,115 V ,with Test/reset				$ 104.42
F24	5304426823		Capacitor,250 V ,35+10 Mfd		Appelez-nous	-
F25	5303303708		Strap,capacitor		Appelez-nous	-
F27	309201003		Pc Board,power ,115 V				$ 39.43
F29	309201305		Pc Board,input/display ,115 V				$ 35.60
F32	309902201		Remote Control,transmitter ,with Lcd		Appelez-nous	-
