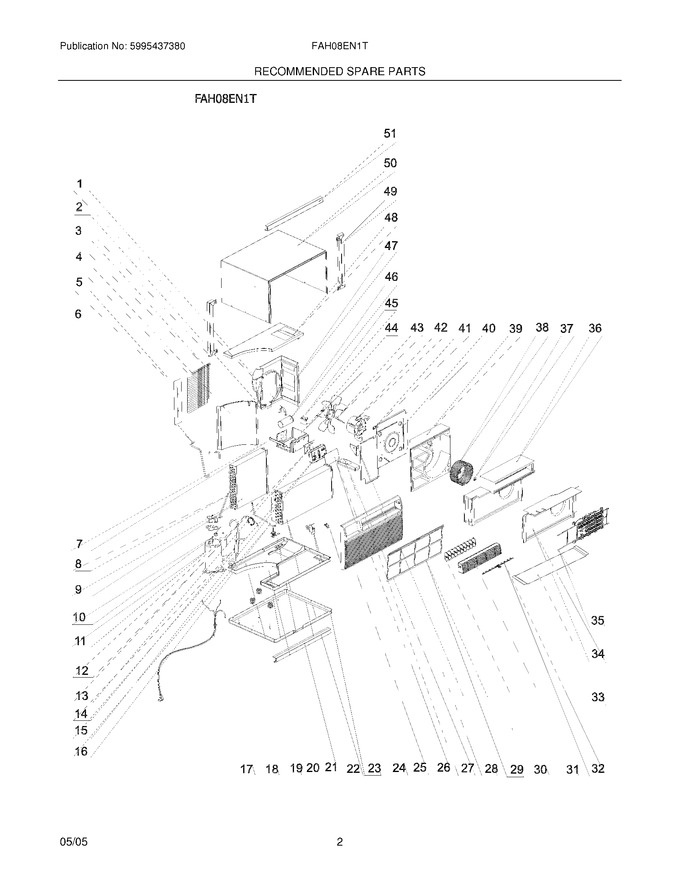

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303303077 | Strap,capacitor Mtg. |
|
- | |||||
| 2 | 309201002 | Pc Board,power ,115 V |
|
- | |||||
| 3 | 309636101 | Screen,safety ,wire Mesh ,cabinet Rear |
|
- | |||||
| 4 | 309629001 | Partition,shroud,galv-steel |
|
- | |||||
| 5 | 309335201 | Baffle-air |
|
- | |||||
| 6 | 309202101 | Tube,discharge |
|
- | |||||
| 7 | 309203101 | Support,control Box |
|
- | |||||
| 15 | 309200201 | Enclosure,input Pcb ,control Panel |
|
$ 19.99 | |||||
| 18 | 309632007 | Base,compressor Mt. ,with Studs |
|
- | |||||
| 19 | 309628704 | Tray,evap Base |
|
- | |||||
| 23 | 5308017123 | Holder,thermistor Clip ,3/8 Inch ,with Seal |
|
- | |||||
| 24 | 309205001 | Clip,filter ,deflector |
|
- | |||||
| 25 | 309200101 | Panel,front Grille |
|
- | |||||
| 26 | 309201402 | Overlay,control Display |
|
- | |||||
| 28 | 309335001 | Baffle-splash/motor |
|
- | |||||
| 29 | 309628204 | Filter,air ,molded Plastic ,grey |
|
$ 47.09 | |||||
| 30 | 309628104 | Louver-vertical |
|
$ 4.41 | |||||
| 31 | 309628004 | Louver,horizontal |
|
- | |||||
| 32 | 309324004 | Link,vertical Louver ,with Handle |
|
- | |||||
| 33 | 309629502 | Shield,heat ,20.94 L ,base |
|
- | |||||
| 34 | 309633401 | Shield,elec. Heater ,vertical |
|
- | |||||
| 36 | 309625501 | Scroll Plate |
|
- | |||||
| 37 | 309112101 | Clamp,blower Wheel Mt ,compression |
|
- | |||||
| 38 | 309631701 | Blower Wheel |
|
$ 19.90 | |||||
| 39 | 309622802 | Scroll |
|
- | |||||
| 40 | 309627401 | Bulkhead |
|
- | |||||
| 41 | 309111201 | Grommet,wire Protector |
|
- | |||||
| 44 | 309200301 | Control Box |
|
- | |||||
| 47 | 309628901 | Shroud,fan |
|
- | |||||
| 48 | 309628802 | Cover,fan ,top |
|
- | |||||
| 49 | 309628603 | Trim,frame ,side |
|
- | |||||
| 50 | 309627504 | Cabinet,wrapper |
|
- | |||||
| 51 | 309628604 | Trim,frame ,top & Bottom |
|
$ 15.07 | |||||
| 17No. | 309343129 | Pwr Cord,w/test/reset ,14awg ,115v ,w/test Reset |
|
- | |||||
| F10 | 309205101 | Overload Protector |
|
- | |||||
| F11 | 309260301 | Compressor Assembly,w/electricals ,115 V,& Mtg Grommets |
|
- | |||||
| F12 | 309372301 | Tube,capillary |
|
- | |||||
| F13 | 309201301 | Pc Board,input/display |
|
- | |||||
| F14 | 309202201 | Tube,suction |
|
- | |||||
| F16 | 309337001 | Tube,anti Gurgle |
|
- | |||||
| F17 | 309343125 | Pwr Cord,w/o Test/reset ,14 Awg ,115 V ,type A |
|
- | |||||
| F21 | 309363601 | Valve-water,drain |
|
- | |||||
| F22 | 309641901 | Condenser |
|
- | |||||
| F27 | 309342611 | Remote Control,transmitter ,with Batteries |
|
- | |||||
| F35 | 309627004 | Heater,1250 W ,115 V |
|
- | |||||
| F42 | 309647503 | Motor,fan ,3 Speed |
|
$ 131.88 | |||||
| F43 | 309629102 | Fan Blade |
|
- | |||||
| F45 | 309201702 | Relay,electric Heater ,115 V |
|
- | |||||
| F46 | 5304426336 | Capacitor,250 V ,35+10 Mfd |
|
- | |||||
| F8 | 5304413933 | Tube,process ,cond. Outlet |
|
- | |||||
| F9 | 309632303 | Evaporator |
|
- |
