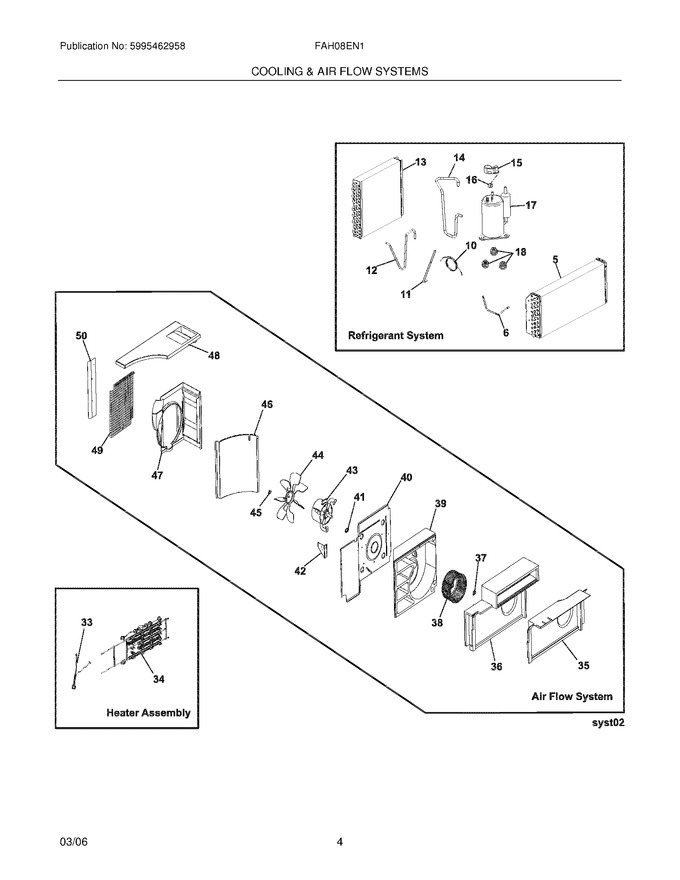

05 - Cooling & Air Flow Systems


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	309337001		Tube,anti Gurgle		Appelez-nous	-
15	5304454860		Cover,compressor ,wiring		Appelez-nous	-
18	5304454861		Grommet,compressor		Appelez-nous	-
35	309633401		Shield,elec. Heater ,vertical		Appelez-nous	-
36	309625501		Scroll Plate		Appelez-nous	-
37	309112101		Clamp,blower Wheel Mt ,compression		Appelez-nous	-
39	309622802		Scroll		Appelez-nous	-
40	309627401		Bulkhead		Appelez-nous	-
41	309100301		Grommet,wire Protector		Appelez-nous	-
42	309335001		Baffle-splash/motor		Appelez-nous	-
45	309906801		Clamp,fan Blade ,assembly		Appelez-nous	-
46	309629001		Partition,condenser ,galv-steel		Appelez-nous	-
47	309628901		Shroud-condenser		Appelez-nous	-
48	309628802		Cover,condenser ,top		Appelez-nous	-
49	309636101		Screen,safety ,wire Mesh ,cabinet Rear		Appelez-nous	-
50	309335201		Baffle-air		Appelez-nous	-
F10	309372301		Tube,capillary		Appelez-nous	-
F11	5304413933		Tube,process ,cond. Outlet		Appelez-nous	-
F12	309202101		Tube,discharge		Appelez-nous	-
F13	309641901		Condenser		Appelez-nous	-
F14	309202201		Tube,suction		Appelez-nous	-
F16	309205101		Overload Protector		Appelez-nous	-
F17	309260501		Compressor		Appelez-nous	-
F33	5304409500		Wiring Harness,heater ,14 Awg		Appelez-nous	-
F34	309627006		Heater		Appelez-nous	-
F38	309631701		Blower Wheel				$ 19.90
F43	309647503		Motor,fan ,3 Speed				$ 131.88
F44	309200501		Fan Blade		Appelez-nous	-
F5	309632303		Evaporator		Appelez-nous	-
