01 - Cover
02 - Wrapper & Front Panel
03 - Control Parts
04 - Air Handling Parts

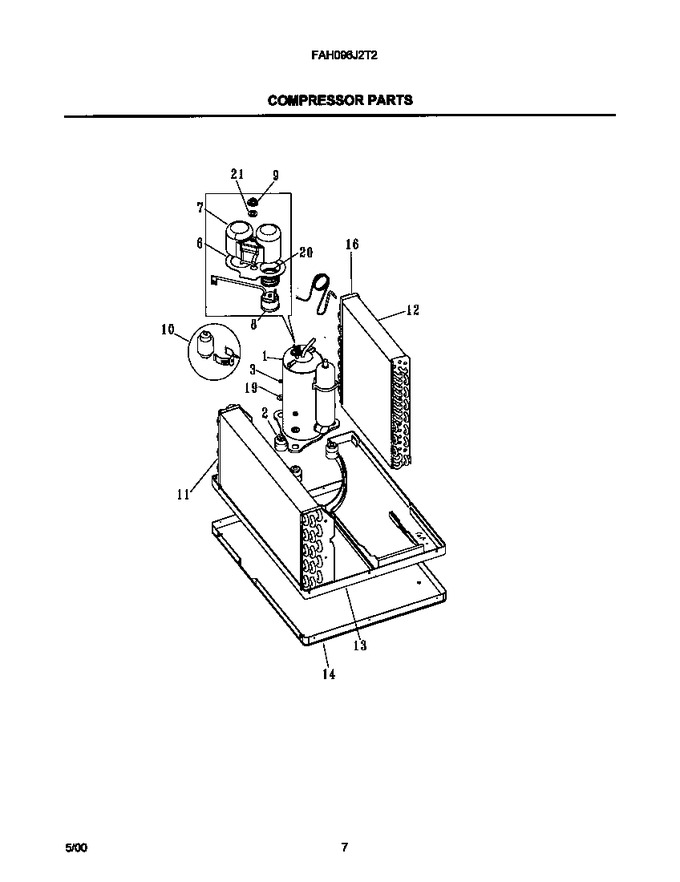

05 - Compressor Parts
06 - Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309603106 | +compr-qb125kl12a Goldstar |
|
- | |||||
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 5303291330 | Gasket-cover |
|
- | |||||
| 7 | 5303291329 | Cover-terminal |
|
- | |||||
| 8 | 5304414963 | +overload Assy-mra 12017-12026 |
|
- | |||||
| 9 | 5303294292 | Nut-cover |
|
- | |||||
| 11 | 309632305 | Evap Assy-18.5 2rw/17fpi |
|
- | |||||
| 13 | 309628703 | Tray-base El Ht |
|
- | |||||
| 14 | 3015312 | Screw, 8-18 X 0.47 |
|
- | |||||
| 16 | 5303209547 | Capillary Tube |
|
- | |||||
| 19 | 5303002664 | Washer,compressor Mtg |
|
- | |||||
| 20 | 5303291328 | Spring-overload |
|
- | |||||
| 21 | 5303293809 | Washer |
|
- |
