01 - Cover
03 - Cabinet Front And Wrapper
05 - Controls
07 - Air Handling Parts

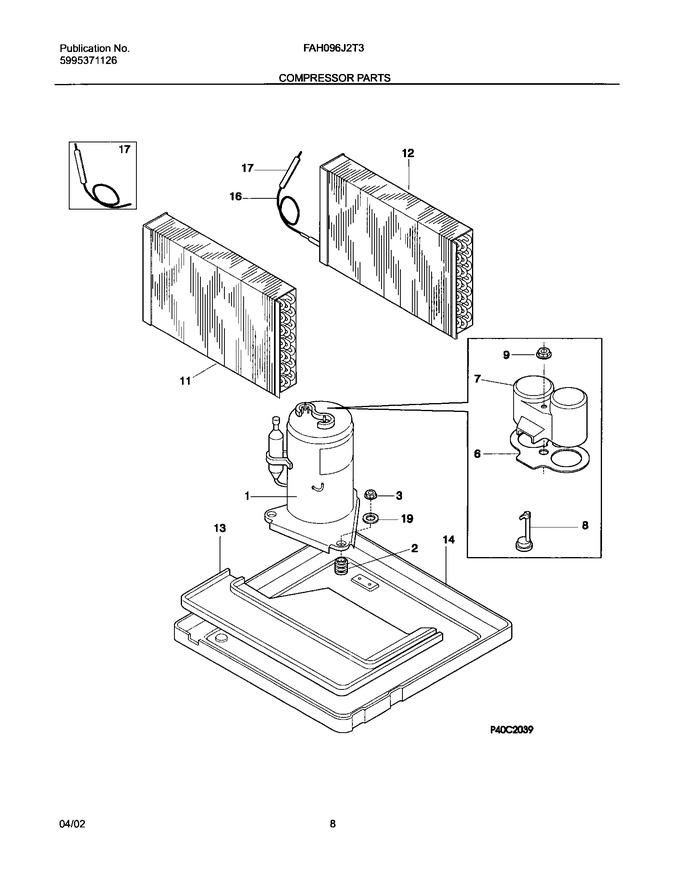

09 - Compressor Parts
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 3200282 | Gasket-terminal Cover |
|
- | |||||
| 7 | 3200281 | Cover,compr Terminal |
|
- | |||||
| 9 | 5303211017 | Nut,terminal Cover ,compressor Elec |
|
- | |||||
| 12 | 309641901 | Condenser,2r/15fpi |
|
- | |||||
| 13 | 309628705 | Tray-base |
|
- | |||||
| 14 | 309632004 | Assy-base/stud |
|
- | |||||
| 19 | 5303002664 | Washer,compressor Mtg |
|
- | |||||
| F1 | 5304427233 | Compressor |
|
- | |||||
| F11 | 309632303 | Evaporator-assy,2rw/17fpi |
|
- | |||||
| F16 | 5303209547 | Capillary Tube,50 Inch Long |
|
- | |||||
| F17 | 5300265301 | Drier-filter,service Kit |
|
$ 284.30 | |||||
| F8 | 5304427232 | Overload Protector |
|
- | |||||
| NI | 5303290357 | Strainer |
|
- | |||||
| NI | 309112501 | Washer,metallic |
|
- |
