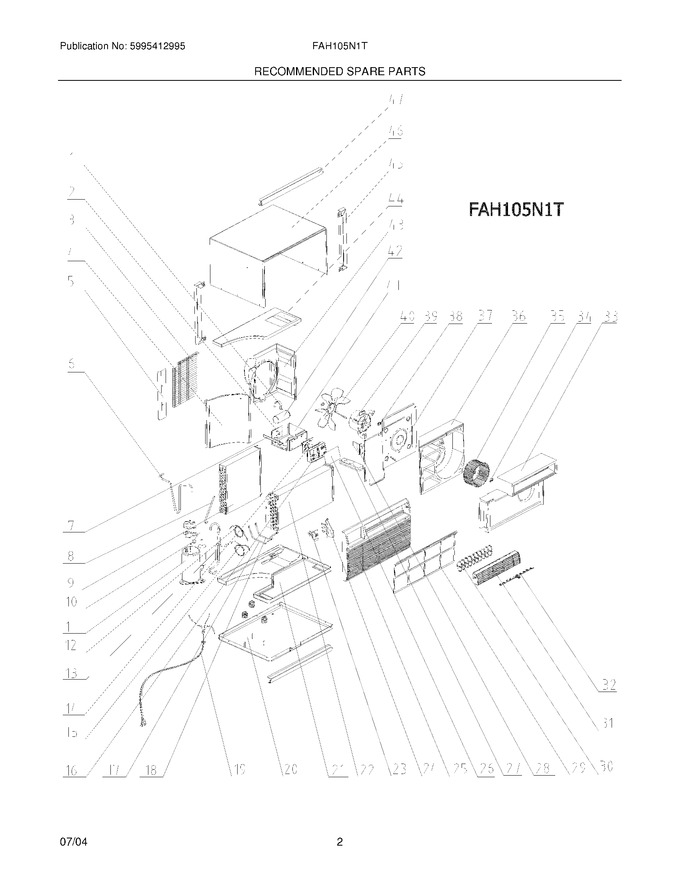

01 - Cover
03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303303077 | Strap,capacitor Mtg. |
|
- | |||||
| 3 | 309636101 | Screen,safety ,wire Mesh ,cabinet Rear |
|
- | |||||
| 4 | 309629001 | Partition,shroud,galv-steel |
|
- | |||||
| 5 | 309335201 | Baffle-air |
|
- | |||||
| 7 | 309203101 | Support,control Box |
|
- | |||||
| 16 | 309200201 | Enclosure,input Pcb ,control Panel |
|
$ 19.99 | |||||
| 20 | 309632006 | Base,compressor Mt. ,with Studs |
|
- | |||||
| 21 | 309628705 | Tray,evap Base |
|
- | |||||
| 23 | 5308017123 | Holder,thermistor Clip ,3/8 Inch ,with Seal |
|
- | |||||
| 24 | 309205001 | Clip,filter ,deflector |
|
- | |||||
| 25 | 309200101 | Panel,front Grille |
|
- | |||||
| 26 | 309201401 | Overlay,control Display |
|
$ 28.32 | |||||
| 28 | 309335001 | Baffle-splash/motor |
|
- | |||||
| 29 | 309628204 | Filter,air ,molded Plastic ,grey |
|
$ 47.09 | |||||
| 30 | 309628104 | Louver-vertical |
|
$ 4.41 | |||||
| 31 | 309628004 | Louver,horizontal |
|
- | |||||
| 32 | 309324004 | Link,vertical Louver ,with Handle |
|
- | |||||
| 33 | 309622901 | Plate,scroll Cover |
|
- | |||||
| 34 | 309112101 | Clamp,blower Wheel Mt ,compression |
|
- | |||||
| 35 | 309631701 | Blower Wheel |
|
$ 19.90 | |||||
| 36 | 309622801 | Housing,blower Scroll |
|
$ 56.28 | |||||
| 37 | 309627401 | Bulkhead |
|
- | |||||
| 38 | 309111201 | Grommet,wire Protector |
|
- | |||||
| 41 | 309200301 | Control Box |
|
- | |||||
| 43 | 309628901 | Shroud,fan |
|
- | |||||
| 44 | 309628802 | Cover,fan ,top |
|
- | |||||
| 45 | 309628603 | Trim,frame ,side |
|
- | |||||
| 46 | 309627504 | Cabinet,wrapper |
|
- | |||||
| 47 | 309628604 | Trim,frame ,top & Bottom |
|
$ 15.07 | |||||
| F10 | 5304430489 | Overload Protector |
|
$ 58.81 | |||||
| F11 | 309202601 | Compressor Assembly,w/electricals ,& Mtg Grommets |
|
- | |||||
| F12 | 309375201 | Tube,capillary ,top |
|
- | |||||
| F13 | 309375101 | Tube,suction |
|
- | |||||
| F14 | 309201302 | Pc Board,input/display ,115 V |
|
$ 186.69 | |||||
| F15 | 309375301 | Tube,capillary ,bottom |
|
- | |||||
| F17 | 309330102 | Tube,anti Gurgle ,bottom |
|
- | |||||
| F18 | 309336101 | Tube,anti Gurgle ,top |
|
- | |||||
| F19 | 309343108 | Power Cord,electric ,16 Awg ,115 V ,type A |
|
- | |||||
| F2 | 309201003 | Pc Board,power ,115 V |
|
$ 39.43 | |||||
| F22 | 309632501 | Condenser |
|
- | |||||
| F27 | 309342611 | Remote Control,transmitter ,with Batteries |
|
- | |||||
| F39 | 309647503 | Motor,fan ,3 Speed |
|
$ 131.88 | |||||
| F40 | 309629102 | Fan Blade |
|
- | |||||
| F42 | 5304426337 | Capacitor,250 Vac ,50+10 Mfd |
|
- | |||||
| F6 | 309375401 | Tube,discharge |
|
- | |||||
| F8 | 5304417604 | Tube,process ,cond. Outlet |
|
- | |||||
| F9 | 309632307 | Evaporator |
|
- |
