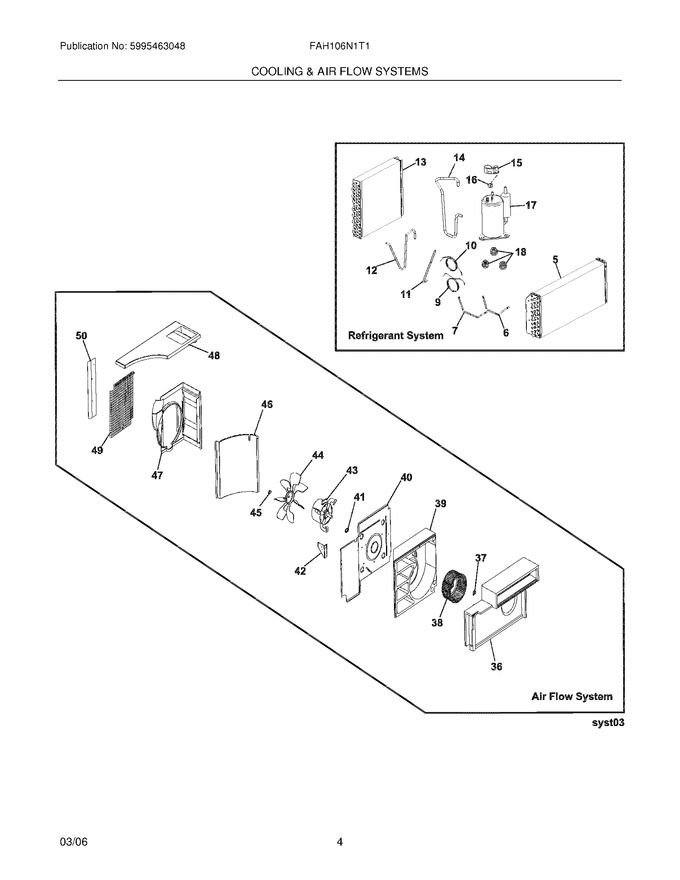

05 - Cooling & Air Flow Systems


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309330102		Tube,anti Gurgle ,bottom		Appelez-nous	-
12	309375401		Tube,discharge		Appelez-nous	-
15	5304416126		Cover,elec Terminal ,compressor		Appelez-nous	-
18	5303283877		Grommet,compressor Mtg ,(3)		Appelez-nous	-
36	309622901		Plate,scroll Cover		Appelez-nous	-
37	309112101		Clamp,blower Wheel Mt ,compression		Appelez-nous	-
39	309622801		Housing,blower Scroll				$ 56.28
40	309627401		Bulkhead		Appelez-nous	-
41	309100301		Grommet,wire Protector		Appelez-nous	-
42	309335001		Baffle-splash/motor		Appelez-nous	-
45	309906801		Clamp,fan Blade ,assembly		Appelez-nous	-
46	309629001		Partition,condenser ,galv-steel		Appelez-nous	-
47	309628901		Shroud-condenser		Appelez-nous	-
48	309628802		Cover,condenser ,top		Appelez-nous	-
49	309636101		Screen,safety ,wire Mesh ,cabinet Rear		Appelez-nous	-
50	309335201		Baffle-air		Appelez-nous	-
F10	309375201		Tube,capillary ,top		Appelez-nous	-
F11	5304417604		Tube,process ,cond. Outlet		Appelez-nous	-
F13	309632501		Condenser		Appelez-nous	-
F14	309375101		Tube,suction		Appelez-nous	-
F16	5304430489		Overload Protector				$ 58.81
F17	309603116		Compressor		Appelez-nous	-
F38	309631701		Blower Wheel				$ 19.90
F43	309647503		Motor,fan ,3 Speed				$ 131.88
F44	309200501		Fan Blade		Appelez-nous	-
F5	309632307		Evaporator		Appelez-nous	-
F6	309336101		Tube,anti Gurgle ,top		Appelez-nous	-
F9	309375301		Tube,capillary ,bottom		Appelez-nous	-
