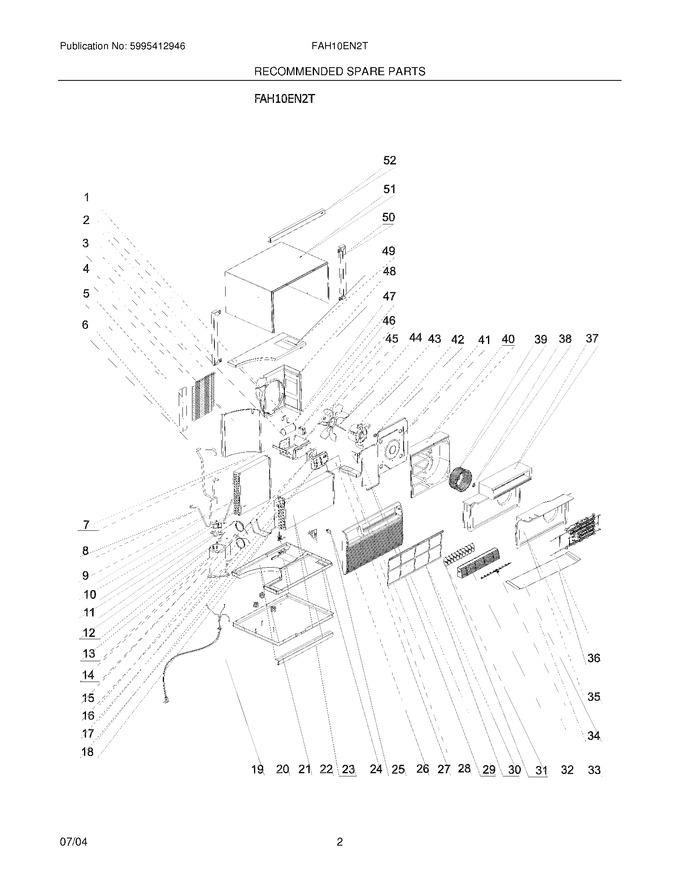

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303303077 | Strap,capacitor Mtg. |
|
- | |||||
| 3 | 309636101 | Screen,safety ,wire Mesh ,cabinet Rear |
|
- | |||||
| 4 | 309629001 | Partition,shroud,galv-steel |
|
- | |||||
| 5 | 309335201 | Baffle-air |
|
- | |||||
| 10 | 309203101 | Support,control Box |
|
- | |||||
| 14 | 309200301 | Control Box |
|
- | |||||
| 19 | 309200201 | Enclosure,input Pcb ,control Panel |
|
$ 19.99 | |||||
| 21 | 309201402 | Overlay,control Display |
|
- | |||||
| 23 | 309632006 | Base,compressor Mt. ,with Studs |
|
- | |||||
| 24 | 309628704 | Tray,evap Base |
|
- | |||||
| 27 | 5308017123 | Holder,thermistor Clip ,3/8 Inch ,with Seal |
|
- | |||||
| 28 | 309205001 | Clip,filter ,deflector |
|
- | |||||
| 29 | 309200101 | Panel,front Grille |
|
- | |||||
| 31 | 309335001 | Baffle-splash/motor |
|
- | |||||
| 32 | 309628204 | Filter,air ,molded Plastic ,grey |
|
$ 47.09 | |||||
| 33 | 309628104 | Louver-vertical |
|
$ 4.41 | |||||
| 34 | 309628004 | Louver,horizontal |
|
- | |||||
| 35 | 309324004 | Link,vertical Louver ,with Handle |
|
- | |||||
| 36 | 309629502 | Shield,heat ,20.94 L ,base |
|
- | |||||
| 37 | 309633401 | Shield,elec. Heater ,vertical |
|
- | |||||
| 39 | 309625501 | Scroll Plate |
|
- | |||||
| 40 | 309112101 | Clamp,blower Wheel Mt ,compression |
|
- | |||||
| 42 | 309622802 | Scroll |
|
- | |||||
| 43 | 309627401 | Bulkhead |
|
- | |||||
| 44 | 309111201 | Grommet,wire Protector |
|
- | |||||
| 48 | 309628901 | Shroud,fan |
|
- | |||||
| 49 | 309628802 | Cover,fan ,top |
|
- | |||||
| 50 | 309628603 | Trim,frame ,side |
|
- | |||||
| 51 | 309627504 | Cabinet,wrapper |
|
- | |||||
| 52 | 309628604 | Trim,frame ,top & Bottom |
|
$ 15.07 | |||||
| F11 | 309201001 | Pc Board,power ,230 V |
|
- | |||||
| F12 | 309373501 | Tube,discharge |
|
- | |||||
| F13 | 309632307 | Evaporator |
|
- | |||||
| F15 | 5304430632 | Overload Protector |
|
- | |||||
| F16 | 309202701 | Compressor Assembly,w/electricals ,& Mtg Grommets |
|
- | |||||
| F17 | 309330102 | Tube,anti Gurgle ,bottom |
|
- | |||||
| F18 | 309201301 | Pc Board,input/display |
|
- | |||||
| F2 | 5303306706 | Capacitor, 370 V,6+30 Mfd |
|
- | |||||
| F20 | 309336101 | Tube,anti Gurgle ,top |
|
- | |||||
| F22 | 309343126 | Power Cord,electric ,12 Awg ,230 V ,type D |
|
- | |||||
| F25 | 309363601 | Valve-water,drain |
|
- | |||||
| F26 | 309632507 | Condenser |
|
- | |||||
| F30 | 309342611 | Remote Control,transmitter ,with Batteries |
|
- | |||||
| F38 | 309627002 | Heater Assy,3450 W ,230 V |
|
- | |||||
| F41 | 309631701 | Blower Wheel |
|
$ 19.90 | |||||
| F45 | 309647501 | Motor,fan ,3 Speed |
|
- | |||||
| F46 | 309629102 | Fan Blade |
|
- | |||||
| F47 | 309201701 | Relay,electric Heater |
|
- | |||||
| F6 | 309373601 | Tube,suction |
|
- | |||||
| F7 | 5304417604 | Tube,process ,cond. Outlet |
|
- | |||||
| F8 | 309373701 | Tube,capillary ,top |
|
- | |||||
| F9 | 309373801 | Tube,capillary ,bottom |
|
- |
