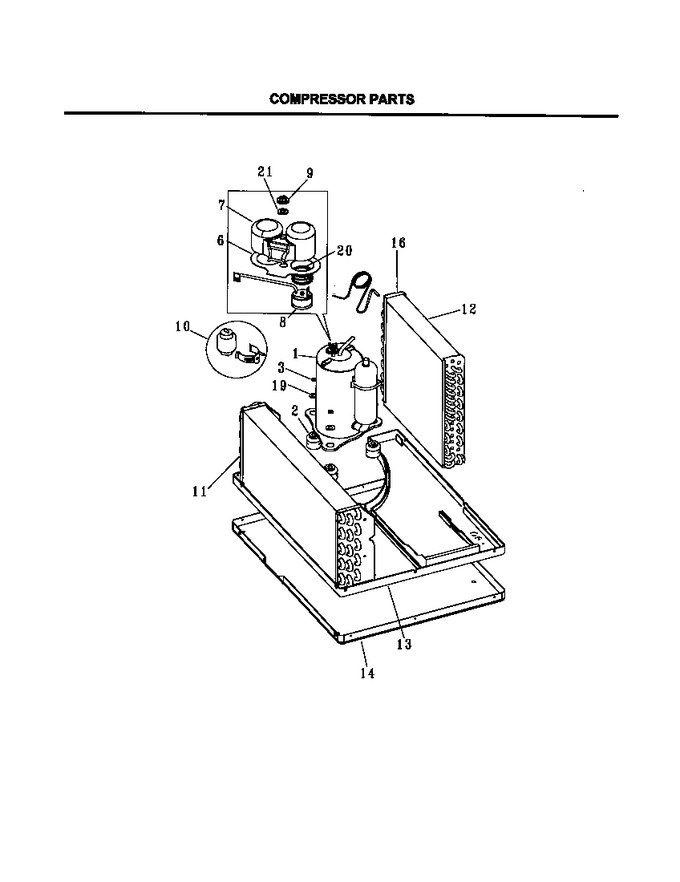

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304408198 | Compr-mat Rot 2p18s236-1a |
|
- | |||||
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 5303002035 | Gasket-cover |
|
- | |||||
| 7 | 5303211011 | Cover-terminal |
|
- | |||||
| 8 | 5304408199 | Ovrld-mra 99809-694 |
|
- | |||||
| 9 | 5303301734 | Nut-cover |
|
- | |||||
| 11 | 309632401 | +evap Assy-18.5 3rw/19fpi |
|
- | |||||
| 12 | 309632505 | +cond Assy-18.5nsl 3r/15fpi |
|
- | |||||
| 13 | 309628703 | Tray-base El Ht |
|
- | |||||
| 14 | 309632003 | Base/stud Assy-18.5 (ncs1403) |
|
- | |||||
| 16 | 3203179 | Capillary Tube |
|
- | |||||
| 19 | 5303002664 | Washer,compressor Mtg |
|
- | |||||
| 20 | 5303002036 | Spring-overload |
|
- | |||||
| 21 | 5303295516 | Washer-cover |
|
- |
