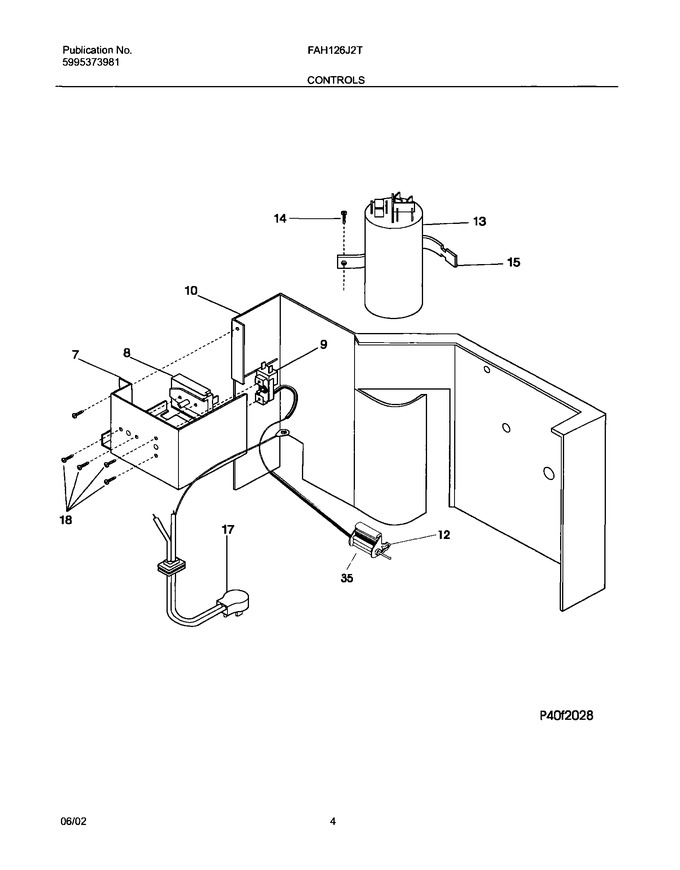

05 - Controls


07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	309627401		Bulkhead		Appelez-nous	-
12	309329801		Clip,sensor Retainer ,3/8 Inch		Appelez-nous	-
14	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,grounding		Appelez-nous	-
15	5303303077		Strap,capacitor Mtg.		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
35	3200761		Spacer,control Bulb ,rubber		Appelez-nous	-
F13	5303203746		Capacitor,370 V ,7.5x25 Mfd		Appelez-nous	-
F17	309343109		Cord-service,type C ,230v/18ga		Appelez-nous	-
F7	309628501		Box-control		Appelez-nous	-
F8	5304408739		Switch,ge 3sp L				$ 155.51
F9	5304408746		Control-temperature,12amp				$ 151.25
NI	309111201		Grommet,wire Protector		Appelez-nous	-
NI	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
