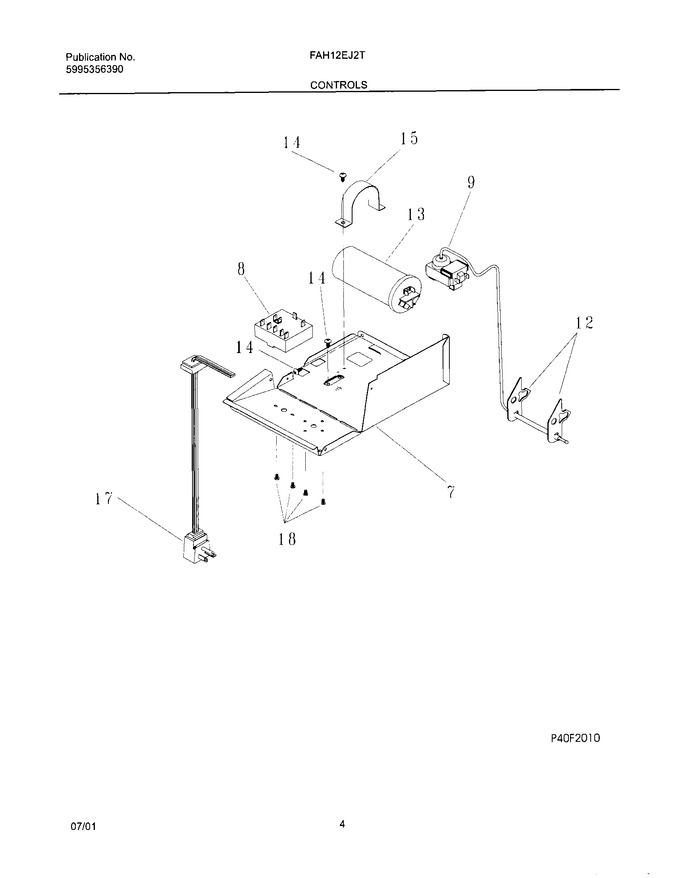

05 - Controls
07 - Air Handling Parts
09 - Compressor Parts
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 5304409496 | Control-temp |
|
- | |||||
| 12 | 309329801 | Clip-sensor Bulb |
|
- | |||||
| 14 | 3015312 | Screw,8-18ab X 0.500 |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 18 | 5303007754 | Screw,6-32 X 0.188 |
|
- | |||||
| F13 | 5303317672 | Capacitor, 370 V, 25 + 7.5 Mfd |
|
- | |||||
| F17 | 309343107 | Cord-service,type-d ,12awg |
|
- | |||||
| F7 | 309628502 | Box-control |
|
- | |||||
| F8 | 309329301 | Switch-elect Ht,2sp .75``shaft |
|
- | |||||
| NI | 5304409509 | Harness Assy,sw/cntrl Box ,12awg |
|
- | |||||
| NI | 3200761 | Spacer - Control Bulb |
|
- |
