View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

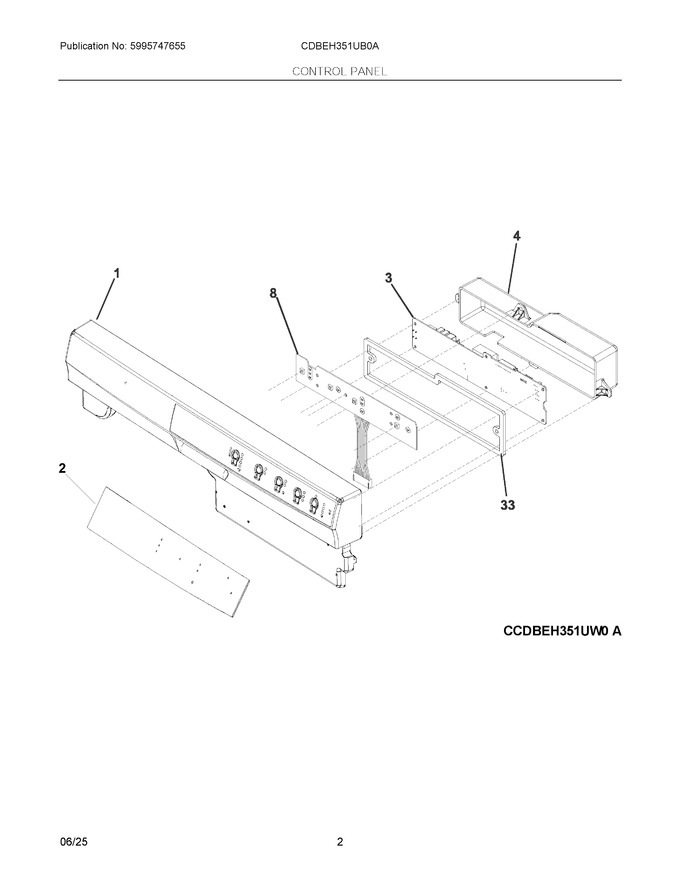

02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140234353021 | Console Assembly, Black |
|
- | |||||
| 2 | 140291695025 | Overlay, Console, Black |
|
- | |||||
| 3 | 140217719107 | Pc Board, Control, K43g (Replaces: 5304535630) |
|
Immediately | $ 83.35 | ||||
| 4 | 5304535650 | Cover, Control Board, Main |
|
Immediately | $ 11.52 | ||||
| 8 | 5304535555 | Control Assembly, User Interface |
|
Immediately | $ 47.42 | ||||
| 33 | 5304506894 | Gasket, Control Cover |
|
$ 14.59 | |||||
| NI | 5304535649 | Harness, Wiring, Main |
|
Immediately | $ 95.48 |
