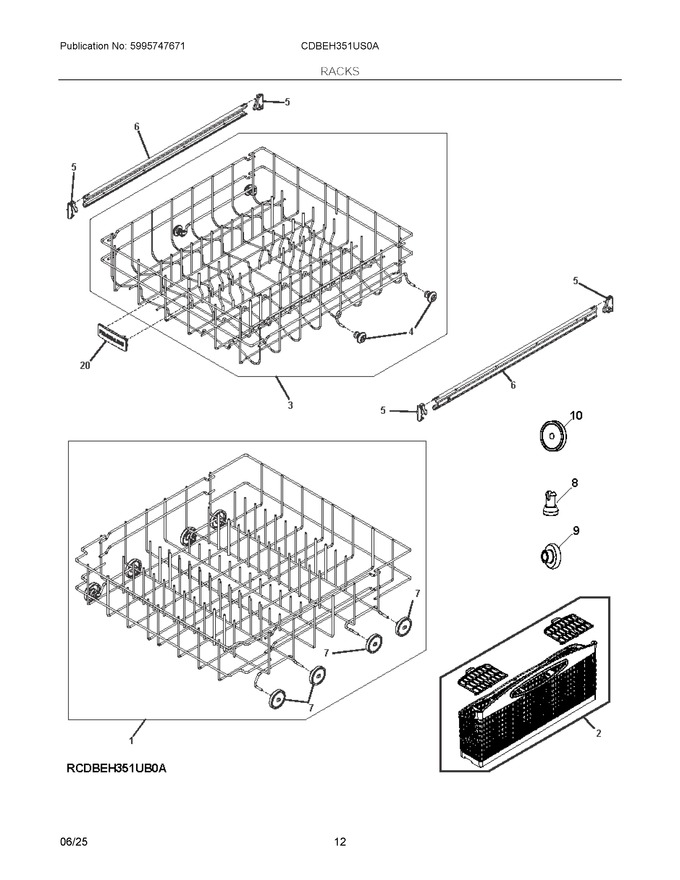

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535379 | Rack Assembly, Lower, Gray, W/rollers (Replaces: 5304535335) |
|
Immediately | $ 124.78 | ||||
| 2 | 5304509753 | Basket, Silverware |
|
Immediately | $ 36.87 | ||||
| 3 | 5304535380 | Rack Assembly, Upper, Gray, W/rollers (Replaces: 5304535334) |
|
Immediately | $ 150.71 | ||||
| 4 | 5304535381 | Wheel & Bushing, Assembly, Midnight Ink |
|
Immediately | $ 10.05 | ||||
| 5 | 5304532200 | Cap, Rack Slide, Midnight Ink |
|
Immediately | $ 4.43 | ||||
| 6 | 5304532271 | Slide, Rack, Upper |
|
$ 50.42 | |||||
| 7 | 5304532229 | Wheel & Bushing Assy, Midnight Ink, Lower Rack |
|
Immediately | $ 12.75 | ||||
| 8 | 5304534218 | Bushing, Roller, Upper Rack |
|
Immediately | $ 0.61 | ||||
| 9 | 5304534219 | Roller, Upper Rack |
|
$ 0.83 | |||||
| 10 | 140054907021 | Rack Wheel, Lower, Midnight Ink |
|
- | |||||
| 20 | 5304534008 | Nameplate, Upper Rack, Midnight Ink |
|
- | |||||
| NI | 154754701 | Screw, Truss Hd, 8-18 Type Ab |
|
$ 3.55 |
