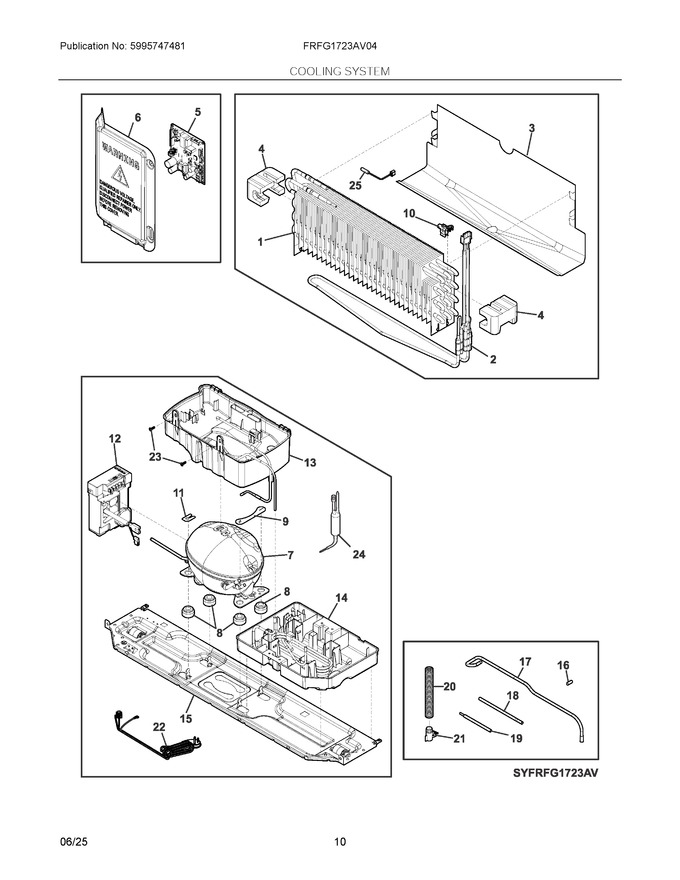

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304529139 | Evaporator, Coil |
|
Immediately | $ 121.09 | ||||
| 2 | 5304529140 | Heater, Defrost, Evaporator |
|
Immediately | $ 150.92 | ||||
| 3 | 5304529143 | Trough, Drain, Evaporator |
|
Immediately | $ 70.37 | ||||
| 4 | 5304529142 | Support, Evaporator |
|
- | |||||
| 5 | 5304535182 | Control Board, Main, Erf2004, Power |
|
Immediately | $ 214.47 | ||||
| 6 | 5304529129 | Housing, Control Board, Rear |
|
- | |||||
| 7 | 5304529146 | Compressor, Embraco, Fmxa9c |
|
$ 354.85 | |||||
| 8 | 811978901 | Grommet, Compressor |
|
- | |||||
| 9 | 5304524607 | Clamp, Compressor, 2 Hole (Replaces: 811998601) |
|
$ 2.89 | |||||
| 10 | 811980406 | Clamp, Ntc, Evaporator (Replaces: 811980402) |
|
$ 4.19 | |||||
| 11 | 5304519152 | Clamp, Compressor, Single Hole |
|
- | |||||
| 12 | 5304529147 | Inverter Assembly, Compressor, Fmx |
|
Immediately | $ 370.99 | ||||
| 13 | 5304536578 | Drain Pan, Assembly, Compressor Mtg., W/tubing (Replaces: 5304529150) |
|
$ 14.05 | |||||
| 14 | 5304529149 | Drain Pan, Assembly, Side, W/tubing |
|
$ 56.12 | |||||
| 15 | 807822704 | Base Assembly, Compressor, W/rollers |
|
- | |||||
| 16 | 5304529162 | Cap, Tubing |
|
$ 4.55 | |||||
| 17 | 5304529148 | Tube, Jumper |
|
$ 28.05 | |||||
| 18 | 808293601 | Tube, Process |
|
$ 11.48 | |||||
| 19 | 5304523065 | Tubing, Extra, Refrigerant |
|
$ 16.07 | |||||
| 20 | 5304529151 | Tube, Drain |
|
$ 9.10 | |||||
| 21 | 811976001 | Valve Assembly, Drain |
|
$ 9.10 | |||||
| 22 | 5304536756 | Cord, Power, Electric Servc (Replaces: 5304529152) |
|
$ 29.68 | |||||
| 23 | 519092015 | Screw, 4, 8x16 Ph |
|
- | |||||
| 24 | A19676501 | Filter, Drier, Service |
|
Immediately | $ 99.73 | ||||
| 25 | 5304520944 | Sensor, Temperature |
|
Immediately | $ 20.74 | ||||
| NI | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| NI | 811908801 | Cable Tie |
|
- | |||||
| NIA | 808199001 | Screw, Self-tapping, 6 X 20 |
|
$ 7.09 | |||||
| NIA | 808337901 | Screw, Pf Ab Pfz Pf, 3.5x1.27x19 |
|
$ 3.03 | |||||
| NIA | 5304529141 | Seal, Connector, 3 Pin |
|
- | |||||
| NIA | 5304519110 | Screw, Trilob, M3 X 6 |
|
$ 3.03 | |||||
| NIA | 5304523032 | Screw, Trilob, M4 X 7.5 |
|
- |
