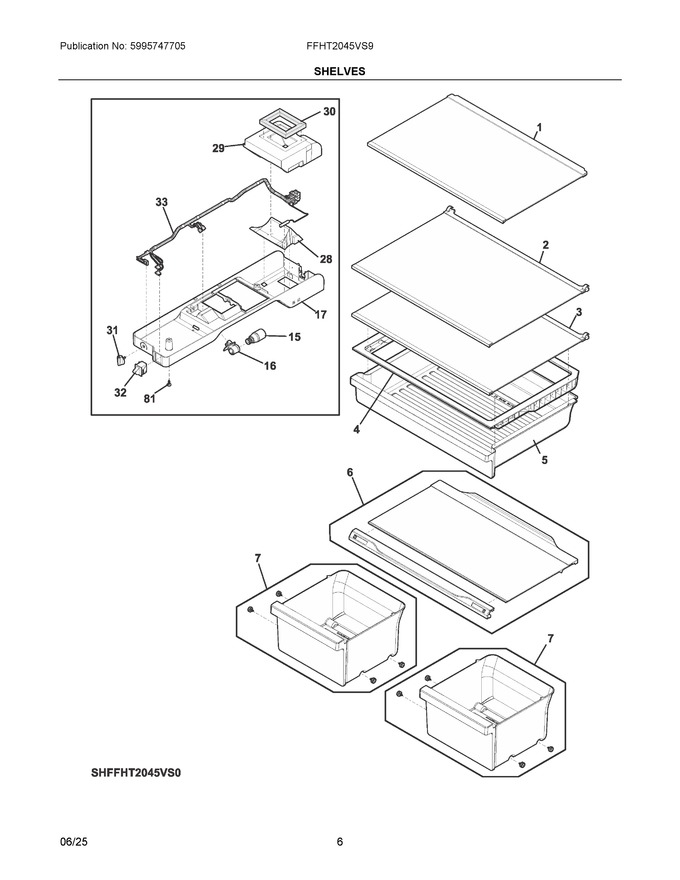

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304538096 | Shelf-assy, Frz Glass Br30sd |
|
- | |||||
| 2 | 5304537141 | Shelf-assy, Ff Glass Br30sd (Replaces: 5304539158) |
|
- | |||||
| 3 | 5304537142 | Shelf Assy-glass 20'sd W/deli (Replaces: 5304539310) |
|
$ 139.91 | |||||
| 4 | 5304524136 | Carriage, Deli Drawer, Fill Width |
|
$ 63.91 | |||||
| 5 | 5304538084 | Drawer-full Width Deli 20'sd |
|
- | |||||
| 6 | 5304534981 | Cover Assembly, Crisper (Replaces: 5304529490) |
|
Immediately | $ 49.27 | ||||
| 7 | 5304534496 | Pan Assembly, Crisper, W/rollers |
|
Immediately | $ 70.30 | ||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 40.19 | ||||
| 16 | 5304530650 | Socket, Light, Led |
|
Immediately | $ 10.01 | ||||
| 17 | 5304524322 | Housing, Control Box |
|
$ 108.45 | |||||
| 28 | 5304522317 | Diffuser, Control Box, Bottom |
|
$ 16.74 | |||||
| 29 | 5304522318 | Diffuser, Control Box, Top |
|
$ 16.69 | |||||
| 30 | 5304520493 | Seal, Air Duct, Top |
|
Immediately | $ 18.20 | ||||
| 31 | 5304522319 | Knob, Control |
|
Immediately | $ 8.34 | ||||
| 32 | 140118119027 | Switch, Door/light, White (Replaces: 5304520495) |
|
Immediately | $ 4.35 | ||||
| 33 | 5304522320 | Harness, Wiring, Control Box, W/temp Sensor |
|
Immediately | $ 88.52 | ||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 |
