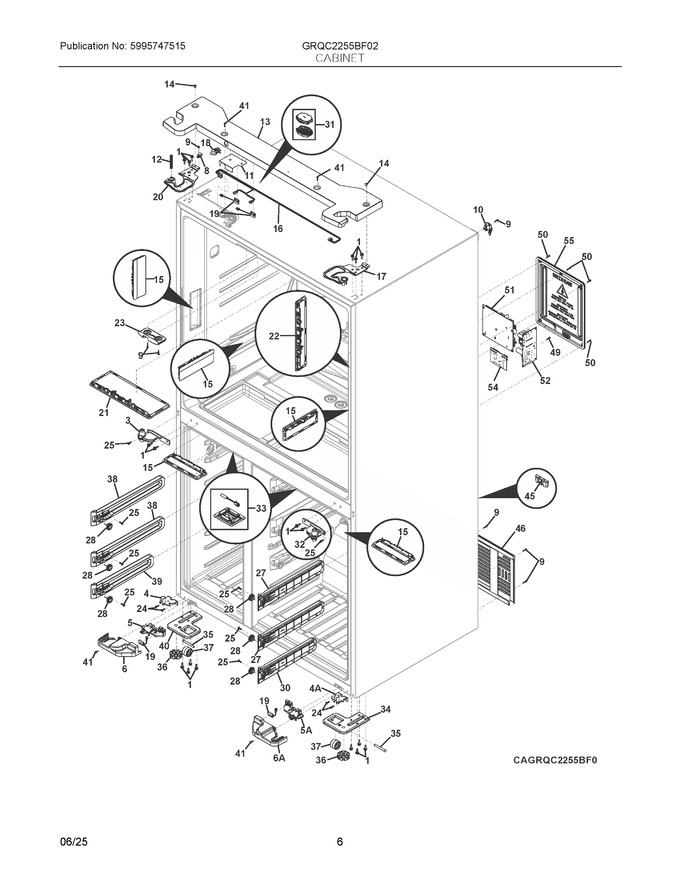

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.31
3	5304526815		Hinge, Center, Lh				$ 104.71
4	5304533510		Hinge, Bottom Door, Lh		Appelez-nous	-
5	5304526822		Support, Reed Switch, Lh Bottom		Appelez-nous	-
6	5304533512		Cover, Foot Base, Lh		Appelez-nous	-
8	240396803		Clamp, Tube/wiring, 5/16				$ 7.59
9	811949503		Screw, Truss, 4.2 X 13				$ 3.03
10	5304519086		Cover, Inlet Tube, Rear		Appelez-nous	-
11	5304523030		Shield, Eyebrow		Appelez-nous	-
12	5304519067		Spring, Tube Protection			Immediately	$ 10.62
13	5304536150		Cover, Eyebrow, Grey   (Replaces: 5304521738)				$ 51.89
14	5304519089		Screw, Self Tapping, M5 X 0.8				$ 6.07
15	5304524656		Light Assembly, Led, 1x, W/lens, Pcb, Harn			Immediately	$ 55.67
16	5304532658		Harness, Wiring, Eyebrow				$ 26.40
17	5304536152		Hinge, Top, Rh   (Replaces: 5304519092)				$ 27.34
18	5304519093		Switch, Light, Gray				$ 31.86
19	5304532559		Switch, Door Reed				$ 19.57
20	5304536153		Hinge, Top, Lh   (Replaces: 5304523031)				$ 19.11
21	5304536788		Light Assembly, Led, 2x Upper, W/lens, Pcb, Harn   (Replaces: 5304524657)				$ 53.54
22	5304534884		Light Assembly, Led, 2gr, W/lens, Pcb, Harn   (Replaces: 5304526810)			Immediately	$ 84.71
23	5304520058		Guide Assembly, Flip Mullion, Base				$ 13.46
24	5304519098		Screw, Trilob, M4 X 12				$ 3.03
25	241641505		Screw, Hilo Phil Pn, .5", White		Appelez-nous	-
27	5304526786		Rail, Freezer Side, Rh Top		Appelez-nous	-
28	5304519124		Roller, Crisper Glide				$ 16.84
30	5304526788		Rail, Freezer Side, Rh Bottom				$ 13.46
31	5303918849		Housing Kit, 2 Connector				$ 210.28
32	5304526816		Hinge, Center, Rh		Appelez-nous	-
33	5303918850		Thermistor Kit, Temperature, W/housing				$ 44.94
34	5304526790		Bracket Assembly, Leveling Foot, Rh		Appelez-nous	-
35	811998302		Shaft, Cabinet Roller				$ 10.62
36	5304519106		Foot, Leveling, Stabilizer				$ 17.44
37	811666601		Roller, Cabinet				$ 9.10
38	5304526785		Rail, Freezer Side, Lh Top		Appelez-nous	-
39	5304526787		Rail, Freezer Side, Lh Bottom		Appelez-nous	-
40	5304526789		Bracket Assembly, Leveling Foot, Lh				$ 55.36
41	5304526847		Screw, Tri Lobe, M4 X 6		Appelez-nous	-
45	5304519111		Clip, Tube, Rear				$ 8.34
46	140040610028		Cover, Machine Compt., Rear   (Replaces: 5304519112)		Appelez-nous	-
49	808199001		Screw, Self-tapping, 6 X 20				$ 7.09
50	5304523032		Screw, Trilob, M4 X 7.5		Appelez-nous	-
51	5304526796		Pc Board, Control, Main				$ 293.49
52	5304526795		Pc Board, Power Supply			Immediately	$ 309.66
54	5304519115		Pc Board, Ac Line Filter, Emc			Immediately	$ 247.43
55	5304519117		Cover, Assembly, Pcb Box		Appelez-nous	-
4A	5304533511		Hinge, Bottom Door, Rh		Appelez-nous	-
5A	5304526823		Support, Reed Switch, Rh Bottom		Appelez-nous	-
6A	5304533513		Cover, Foot Base, Rh		Appelez-nous	-
NI	5304519116		Harness, Wiring, Power Supply				$ 19.36
NI	5304526848		Screw, Self Tapping, 4.2 X 13		Appelez-nous	-
NI	240396801		Clamp, Tube/wiring, 1/2", Nylon, Black/natural				$ 19.13
