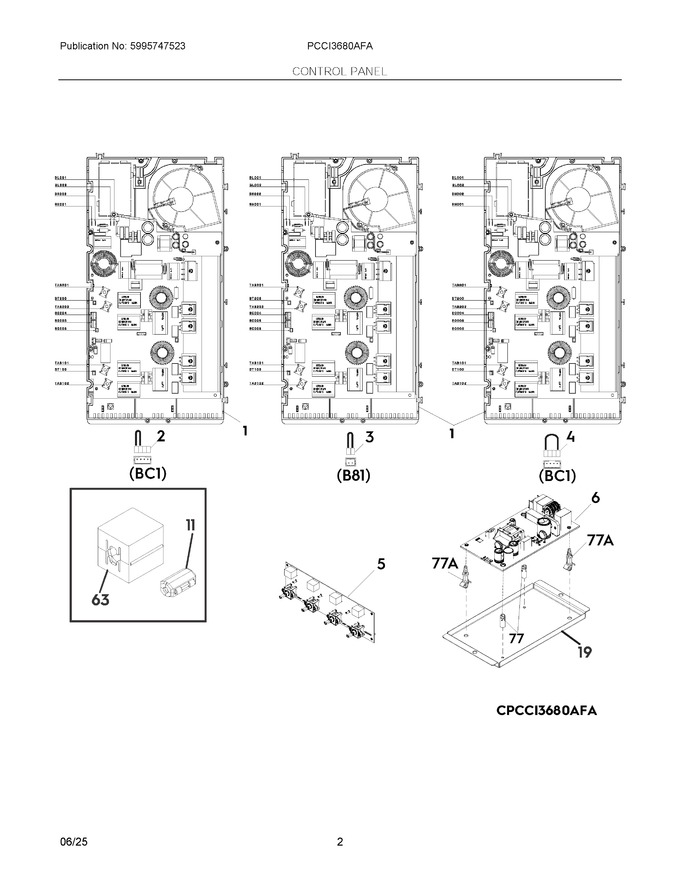

01 - Cover Sheet


02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304538005		Generator Board			Immediately	$ 237.59
2	5304506068		Wire, Jumper, Lh Generator, Bc1			Immediately	$ 9.21
3	387540300		Bridging Plug, Dummy Ntc, B81, Center Gen.				$ 3.84
4	318578302		Wire, Jumper, Generator, Bc1				$ 18.43
5	8588088440074		Pcb, User Interface   (Replaces: 5304538007)		Appelez-nous	-
6	5304537991		Pc Board, Assembly				$ 119.46
11	5304514339		Filter, Ferrite Choke			Immediately	$ 39.95
19	5304506069		Box, Protection, Smps1				$ 11.67
63	5304506076		Filter, Ferrite Choke			Immediately	$ 42.01
77	316247900		Spacer, Power Board				$ 44.65
77A	316114100		Spacer				$ 60.96
NI	318578332		Harness, Wiring, Communication, Generators			Immediately	$ 54.35
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NI	202855101		Holder, Cable				$ 1.42
NI	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
NI	5304537995		Harness, Wiring, Ui To Generator				$ 103.13
NI	5304537994		Harness, Wiring, Generator			Immediately	$ 24.39
NI	5304528301		Screw, Truss, 8-32 X 17.65				$ 3.74
NI	5304527626		Box & Wires Assy		Appelez-nous	-
NI	5304527623		Harness Assembly, Emc Filter, W/capacitors				$ 88.60
NI	5304527611		Filter Assy, Grounding, W/toroid		Appelez-nous	-
NI	5304522492		Harness, Wiring, Main			Immediately	$ 104.66
NI	5304506103		Harness, Wiring, Ui Board, To Lh Zone				$ 14.76
NI	305309704		Screw, St, 4.2 : 12, (9)		Appelez-nous	-
NI	305376201		Nut, Terminal Block, (2)		Appelez-nous	-
NI	5303307980		Screw, 8-32 X 0.437, (4)			Immediately	$ 14.18
NI	5304538008		Harness, Wiring, Backlit Module			Immediately	$ 122.31
NIA	305309608		Screw, M4		Appelez-nous	-
NIA	5304462994		Screw, 8-32 X 5/16		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
