SELECT A DIAGRAM

01 - Cover Sheet

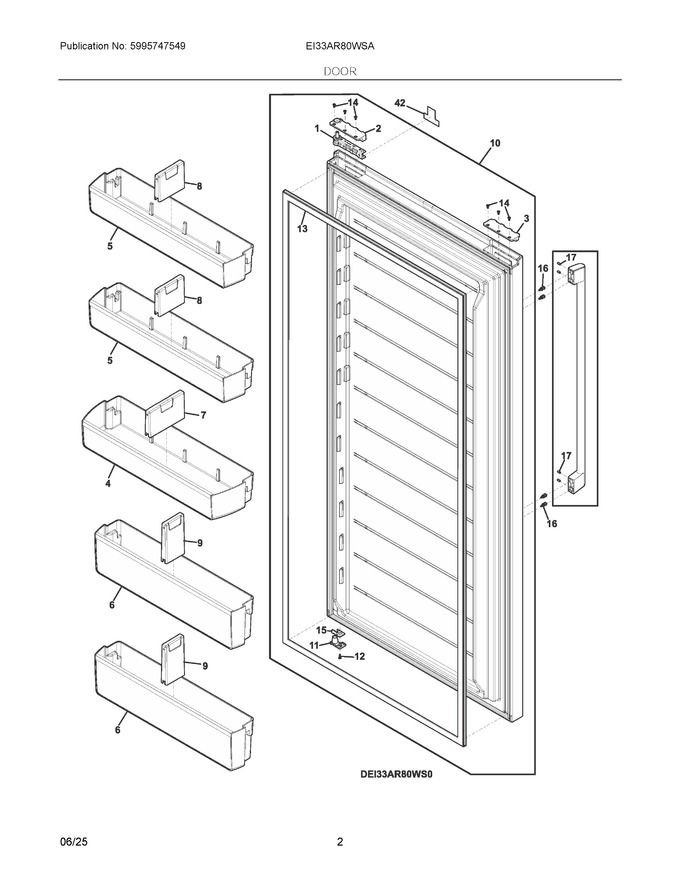

02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524643		Closer Assembly, Door, Rh Upper			Immediately	$ 96.26
2	5304524623		Cover, Door Cap, Gray, Rh, Closer Side				$ 14.46
3	5304524626		Cover, Door Cap, Gray, Lh, Non-closer Side				$ 14.15
4	5304539736		Bin-door Gallon, 4				$ 120.35
5	5304539737		Bin-door 2 Liter			Immediately	$ 115.81
6	5304539738		Bin-door Tall Item		Appelez-nous	-
7	5304538167		Divider-bin Gallon				$ 19.55
8	5304519044		Magnet, Reed Switch			Immediately	$ 18.95
9	5304538168		Divider-bin Tall Item				$ 15.63
10	5304524740		Door Assembly, Complete, Stainless, Rh Swing			Immediately	$ 738.83
11	5304524745		Bearing, Door, Lower			Immediately	$ 7.96
12	241953903		Screw, Door Stop, Lower				$ 5.07
13	140190906879		Gasket, Door, Grey   (Replaces: 5304524888)				$ 111.73
14	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
15	5304524767		Stop, Door, Lower Bearing			Immediately	$ 11.38
16	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
17	218755410		Screw-set, 10-32 X .354 In		Appelez-nous	-
18	5304524807		Handle Assembly, Stainless, W/set Screws			Immediately	$ 182.18
42	5304532471		Label-nameplate (chrome)				$ 18.27
8A	5304538164		Divider-bin 2 Liter				$ 16.78
NIA	241601002		Wrench, Allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
