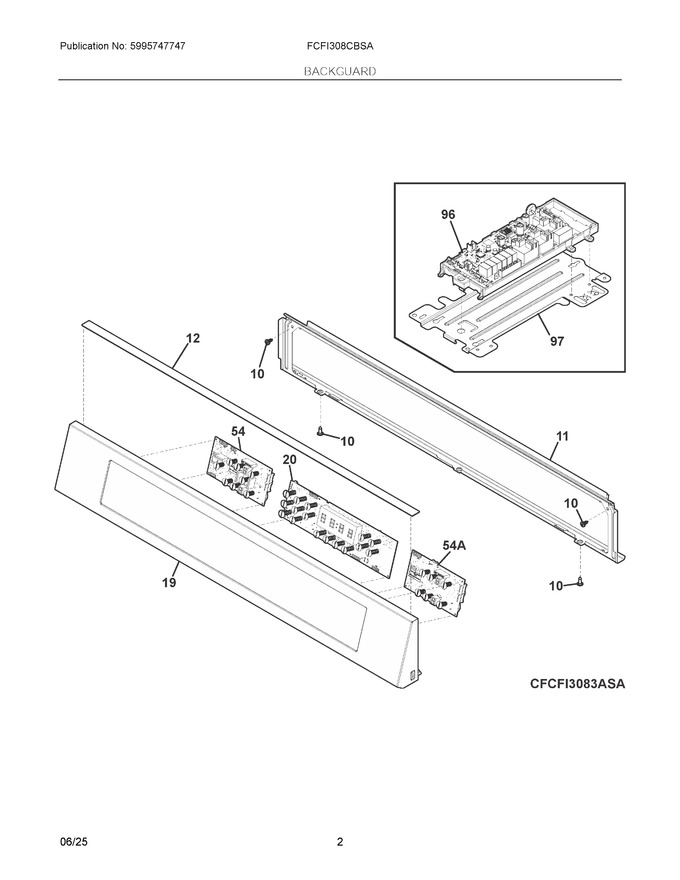

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
12	5304528554		Seal, Smoothtop			Immediately	$ 31.86
19	140199546452		Control Panel, Assembly, Stainless		Appelez-nous	-
20	140225819279		User Interface, Ui415				$ 125.11
54	5304534654		Control, Induction Units, Lh Side			Immediately	$ 130.64
96	140171068053		Pc Board, Ovc Relay   (Replaces: 5304535108)			Immediately	$ 126.93
97	5304528372		Bracket, Ovc Board				$ 11.68
54A	5304534655		Control, Induction Units, Rh Side			Immediately	$ 139.24
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	5304533439		Harness, Wiring, Gen To Pux, Induction				$ 31.46
NI	5304533436		Harness, Wiring, Macs, Lux To Acadia				$ 24.27
NI	5304529016		Harness, Wiring, Macs Panel, To Ui Board				$ 23.16
NI	5304538919		Screw, T20 Washer, 4.5 X 14.5   (Replaces: 5304533472)		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
