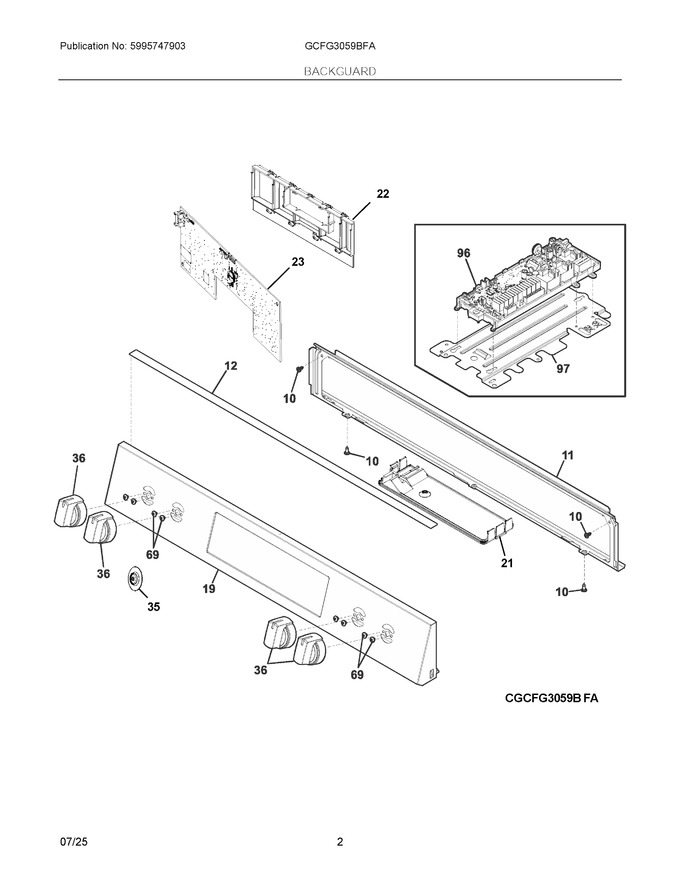

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
12	5304534089		Seal, Maintop Panel		Appelez-nous	-
19	5304538837		Control Panel, Assembly, Stainless				$ 149.86
21	5304538627		Cover, Control Ui		Appelez-nous	-
22	5304533876		Chassis, Control			Immediately	$ 17.91
23	140199403027		Control Board, Hmi Hector				$ 49.37
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
36	5304536322		Knob, Top Valve, Stainless				$ 39.34
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
96	140171068053		Pc Board, Ovc Relay   (Replaces: 5304535108)			Immediately	$ 126.93
97	5304528372		Bracket, Ovc Board				$ 11.68
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	5304538629		Harness, Macs To Ui		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316089500		Screw, 10-16 X .486				$ 13.46
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
