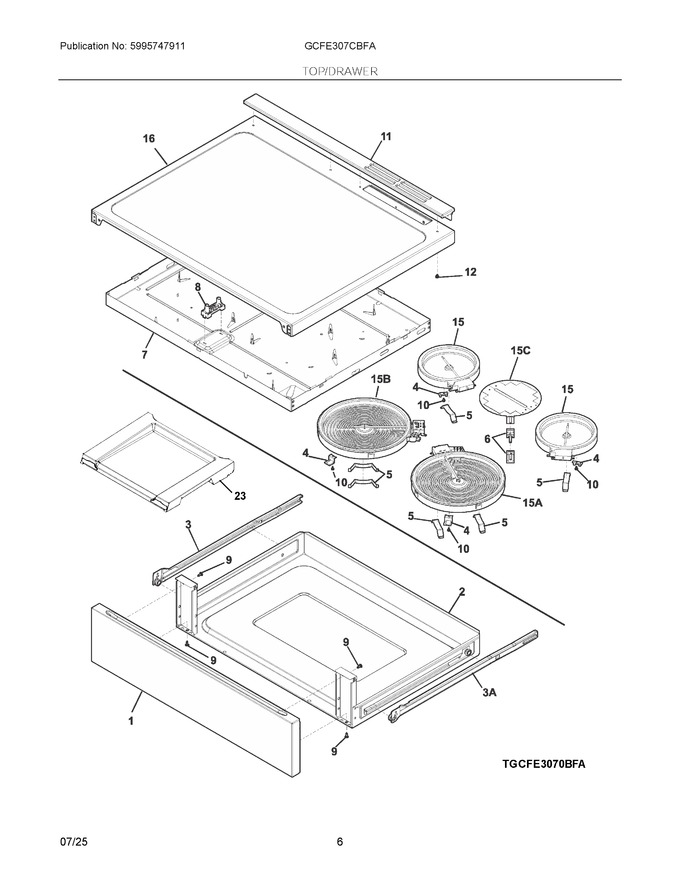

04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304528223		Panel, Drawer, Ez Care Stainless, Outer				$ 112.77
2	5304528242		Drawer Assembly, W/glides			Immediately	$ 99.52
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
4	387683300		Bracket, Surface Element			Immediately	$ 13.42
5	5304526627		Spring, Element Support			Immediately	$ 8.19
6	5304528474		Clip, Spring, Element				$ 7.59
7	5304533428		Burner Box, Smoothtop		Appelez-nous	-
8	5304538115		Indicator Light 250v Ul				$ 13.33
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
11	5304533957		Trim, Vent, Black, Rear				$ 123.21
12	5304533410		Screw, M4.2x7x1.06, Black		Appelez-nous	-
14	5304528554		Seal, Smoothtop			Immediately	$ 31.86
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	140200161119		Smoothtop, Assembly			Immediately	$ 271.22
23	140288736014		Pizza Shield				$ 134.33
15A	316530001		Element, Surface, 9", 3200w, Turbo Boil			Immediately	$ 216.16
15B	140249706031		Element Top, Radiant, 9/6", 3000w			Immediately	$ 86.00
15C	140273621015		Element, Radiant, 100w, Warmer			Immediately	$ 35.77
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	5304529019		Harness, Wiring, Surface Element			Immediately	$ 106.93
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NIA	5304534653		Clip, Support, Burner Box				$ 9.71
