01 - Cover Sheet


02 - Oven, Cabinet


03 - Control Panel, Door, Misc.


04 - Wiring Diagram

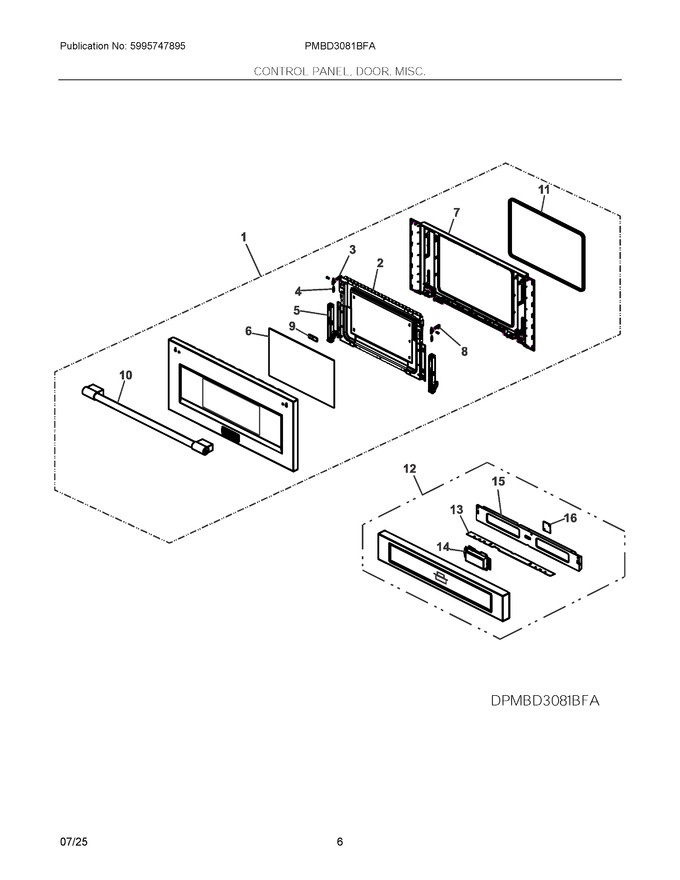

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304532664		Door Assembly, Complete, W/handle				$ 680.25
2	5304515300		Door Frame, Assembly		Appelez-nous	-
3	5304514310		Latch, Door		Appelez-nous	-
4	5304514311		Spring, Door Latch		Appelez-nous	-
5	5304515301		Hinge, Assembly				$ 188.78
6	5304514306		Glass, Door, Middle			Immediately	$ 159.96
7	5304515302		Cover, Choke, Door				$ 99.62
8	5304514312		Pin, Latch		Appelez-nous	-
9	5304527873		Bracket, Plastic		Appelez-nous	-
10	5304532665		Handle, Door		Appelez-nous	-
11	5304515305		Gasket, Door, Silicone				$ 98.32
12	4056017918		Control Panel Assembly, Complete		Appelez-nous	-
13	5304527870		Shield, Control Panel		Appelez-nous	-
14	4056017926		Pc Board, Display Assembly		Appelez-nous	-
15	5304515310		Bracket, Control Panel		Appelez-nous	-
16	5304515311		Cover, Light Block		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
