View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door

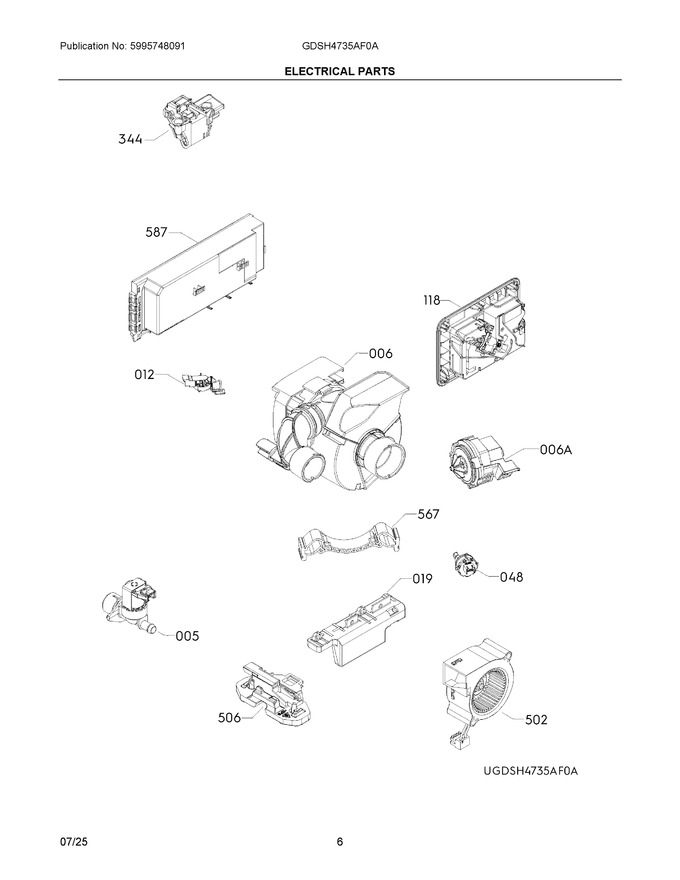

04 - Electrical Parts
05 - Hydraulical Parts
06 - Tub&frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 807445905 | Valve, Fill |
|
Immediately | $ 92.83 | ||||
| 6 | A10281708 | Pump Assembly, Circulation, Complete, W/heater |
|
Immediately | $ 186.61 | ||||
| 12 | A00055408 | Switch, Pressure |
|
Immediately | $ 83.50 | ||||
| 19 | A00666014 | Lamp, Door Indicator, Blue/white |
|
$ 20.55 | |||||
| 48 | A00040106 | Sensor, Turbidity |
|
Immediately | $ 62.90 | ||||
| 147 | 140237316041 | Tube, Detergent, Cleanboost, Premix |
|
$ 82.22 | |||||
| 344 | 111315040 | Door Lock, Assembly |
|
Immediately | $ 210.12 | ||||
| 502 | A05660402 | Blower Assembly, Radial |
|
Immediately | $ 142.47 | ||||
| 506 | A00056506 | Switch Assembly, Float |
|
Immediately | $ 52.28 | ||||
| 567 | 117302400 | Support, Motor, Rubber |
|
- | |||||
| 587 | 8581175346205 | Main Board, Pb150, Configured |
|
$ 164.34 | |||||
| 6A | A00044328 | Drain Pump, Assembly |
|
Immediately | $ 103.06 | ||||
| NI | A18268002 | Harness, Wiring, Door |
|
Immediately | $ 111.76 | ||||
| NI | 807555203 | Harness, Wiring, Pcb, Heater |
|
Immediately | $ 116.85 | ||||
| NI | 5304524544 | Harness, Wiring, Pump |
|
Immediately | $ 128.11 |
