| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

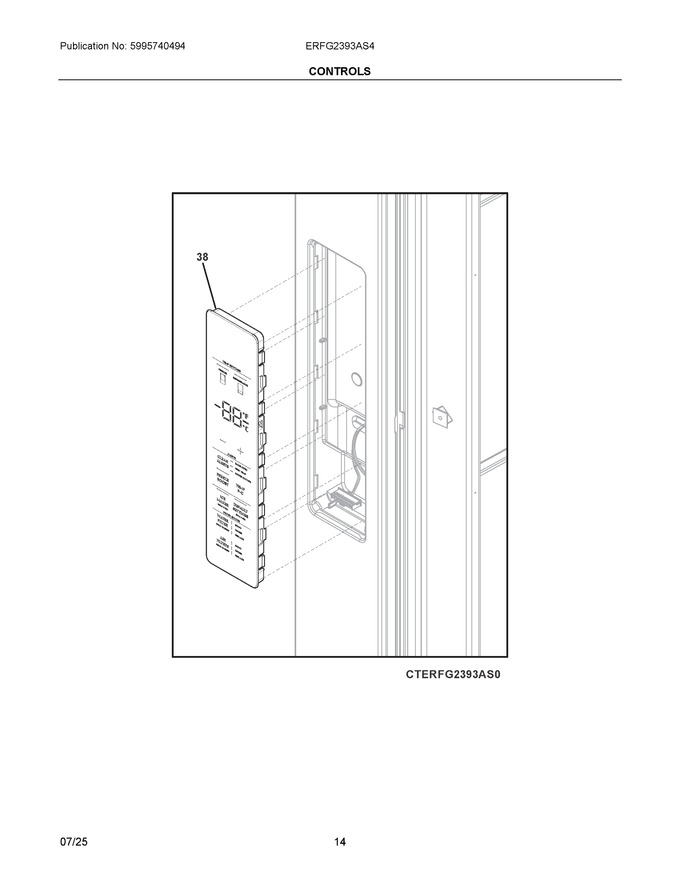

| 38 | 140153004332 | Board Assembly, User Interface (Replaces: 5304532860) |
|
- | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 |
