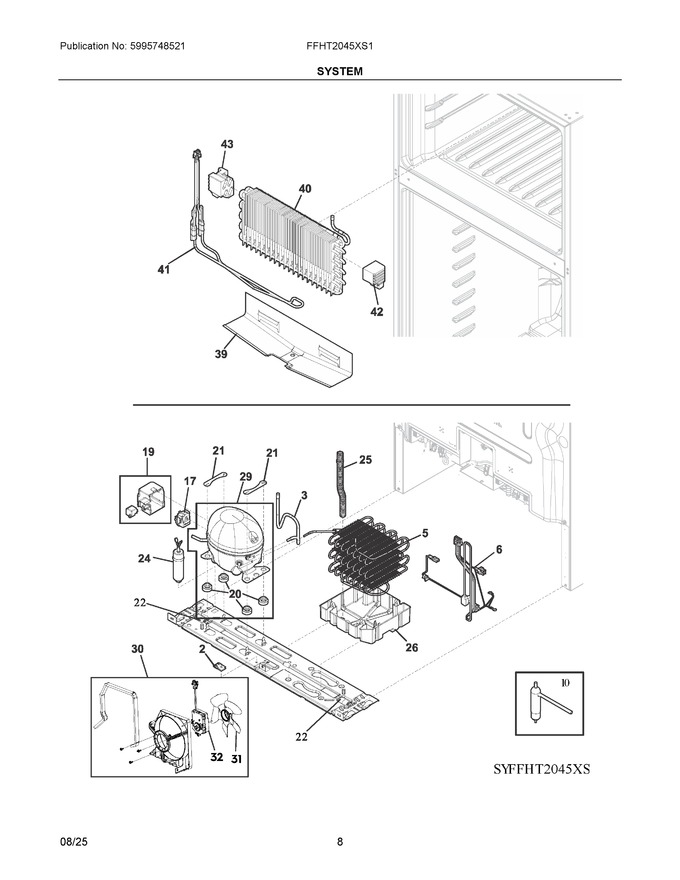

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304456288		Clamp, Wiring Harness, Galv Steel, Strn Relief		Appelez-nous	-
3	5304519693		Tube, Suction Jumper				$ 31.10
5	5304530007		Condenser, Dynamic			Immediately	$ 87.62
6	5304519649		Harness, Wiring, Machine Compt.			Immediately	$ 98.87
10	A19676501		Filter, Drier, Service   (Replaces: 5304522277)			Immediately	$ 99.73
17	5304529285		Starter, Compressor, Tsd 2.1			Immediately	$ 72.05
19	5304528888		Cover, Electricals, Compressor				$ 21.59
20	5304522323		Grommet, Compressor				$ 38.68
21	5304524607		Clamp, Compressor				$ 2.89
22	5304519667		Base Assembly, Compressor, W/rollers			Immediately	$ 64.46
24	5304530011		Capacitor, 24 #			Immediately	$ 27.86
25	5304519743		Tube, Drain Extension			Immediately	$ 8.34
26	5304519674		Pan, Drain				$ 39.47
27	5304519750		Seal, Foam, Drain Pan				$ 2.62
29	5304538464		S/a Pur Comp. Jiax Te1114hy		Appelez-nous	-
30	5304519734		Fan Assembly, Condenser, W/shroud-foam			Immediately	$ 156.99
31	8582416395027		Blade, Condenser Fan		Appelez-nous	-
39	5304519679		Trough, Evap Drain				$ 57.64
40	5304522324		Evaporator   (Replaces: 140148637014)			Immediately	$ 150.10
41	5304522340		Heater, Evap Defrost, W/thermostat			Immediately	$ 88.79
42	5304522326		Support, Evaporator, Rh				$ 7.59
43	5304522327		Support, Evaporator, Lh				$ 7.59
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
