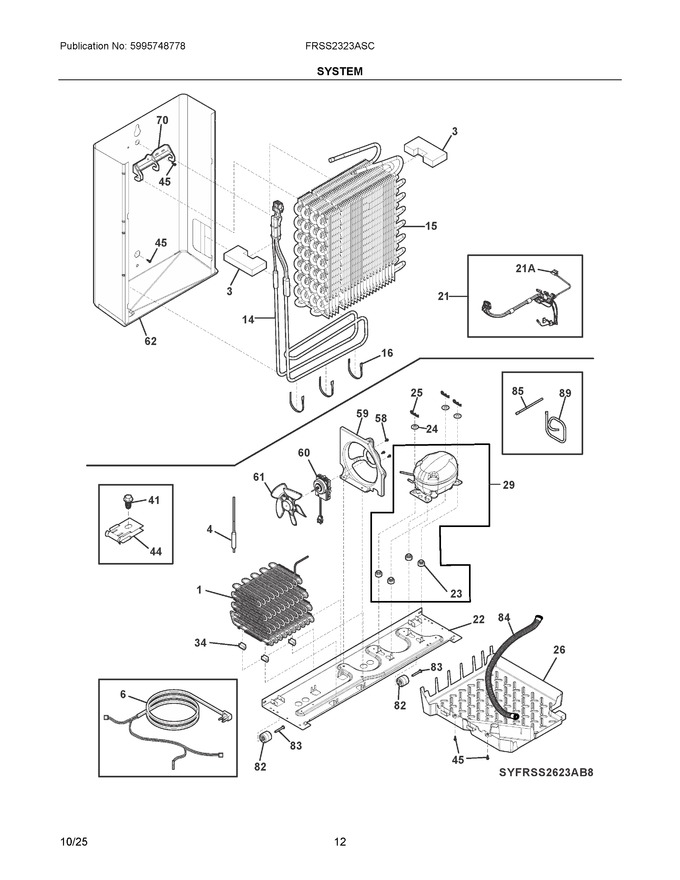

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304527094 | Condenser |
|
$ 96.32 | |||||
| 3 | 218679613 | Block-evap Coil, Styrofoam, (2) |
|
- | |||||
| 4 | 5303305677 | Dryer-filter (Replaces: 242047604) |
|
Immediately | $ 31.67 | ||||
| 5 | 242219302 | Blade, Condenser Fan, Fan |
|
Immediately | $ 17.44 | ||||
| 6 | 241516904 | Cord, Service |
|
Immediately | $ 38.68 | ||||
| 14 | 5304526032 | Heater, Defrost |
|
Immediately | $ 141.06 | ||||
| 15 | 5303918286 | Evaporator Kit |
|
$ 354.85 | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 21 | 140130970050 | Harness Assembly, Low Side, Dc, Evap Fan (Replaces: 5304526980) |
|
Immediately | $ 23.81 | ||||
| 22 | 5304526020 | Base, Compressor |
|
- | |||||
| 23 | 5304523829 | Grommet, Compressor |
|
$ 10.85 | |||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 12.89 | |||||
| 25 | 242037702 | Clip-spring |
|
$ 8.51 | |||||
| 26 | 241697603 | Pan-defrost, 26 |
|
$ 79.22 | |||||
| 29 | 5304534515 | Compressor, Jiaxipera Vmh, W/o Electricals |
|
$ 281.75 | |||||
| 34 | 240405201 | Grommet, Rubber, Black, 23 # |
|
$ 19.85 | |||||
| 41 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 44 | 5304456288 | Clamp, Wiring Harness, Galv Steel, Strn Relief |
|
- | |||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 58 | 240569202 | Screw, 8-18 X .500 |
|
$ 2.12 | |||||
| 59 | 5304534556 | Shroud, Condenser Fan |
|
$ 63.86 | |||||
| 60 | 5304538592 | Motor-cond Fan |
|
- | |||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 62 | 5304527024 | Trough, Evap Drain |
|
- | |||||
| 70 | 218990801 | Bracket-evap/cvr Mtg |
|
$ 63.79 | |||||
| 82 | 240335202 | Roller, Compressor Base, Rear |
|
$ 21.27 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 241830905 | Tube-drain, Lower |
|
$ 19.85 | |||||
| 85 | 5304525893 | Tube, Connector, Suction |
|
Immediately | $ 20.48 | ||||
| 89 | 215346903 | Tube-process |
|
Immediately | $ 10.57 | ||||
| 21A | 5303918645 | Thermistor Kit, Evaporator, W/connector |
|
Immediately | $ 84.60 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| NI | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.03 | |||||
| NI | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NI | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| NI | 5304527119 | Screw, Drilling, 10-24 X 3/4 |
|
- | |||||
| NIA | 242036801 | Clip-tube, Drain |
|
$ 96.39 | |||||
| NIA | 5304526071 | Connector, Wire, To Tube |
|
- | |||||
| NIA | 240346701 | Tape, Foam Seal, Shroud |
|
$ 29.77 | |||||
| NIA | 140287527075 | Harness-wiring, Machine Compt (Replaces: 5304535347) |
|
- | |||||
| NIB | 240359403 | Screw-fan Shroud, (2) |
|
$ 3.79 |
