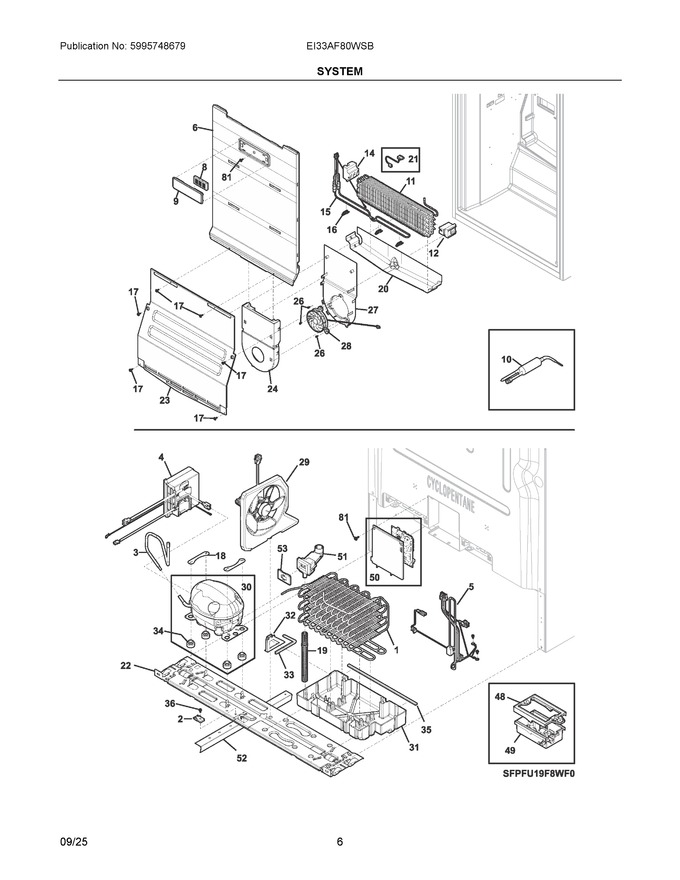

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304530007 | Condenser, Dynamic |
|
Immediately | $ 87.62 | ||||
| 2 | 5304454459 | Clamp, Cable |
|
- | |||||
| 3 | 5304519693 | Tube, Suction Jumper |
|
$ 31.10 | |||||
| 4 | 5304531506 | Inverter, Flexdrive 2.2 |
|
Immediately | $ 156.00 | ||||
| 5 | 5304532290 | Harness, Wiring, Machine Compt. |
|
Immediately | $ 61.27 | ||||
| 6 | 5304528047 | Cover Assembly, Air Tower, W/air Duct |
|
Immediately | $ 225.67 | ||||
| 8 | ELPAULTRA2 | Air Filter, Pure Air Ultra2, Elux |
|
Immediately | $ 28.35 | ||||
| 9 | 5304524696 | Cover, Air Filter, Electrolux |
|
$ 67.30 | |||||
| 10 | A19676501 | Dryer Assembly, Filter (Replaces: 5304522277) |
|
Immediately | $ 99.73 | ||||
| 11 | 5304523830 | Evaporator, Coil |
|
Immediately | $ 143.67 | ||||
| 12 | 5304524954 | Support, Evaporator, Rh |
|
$ 8.68 | |||||
| 14 | 5304523832 | Support, Evaporator, Lh |
|
Immediately | $ 3.62 | ||||
| 15 | 5304524953 | Heater, Defrost |
|
Immediately | $ 165.56 | ||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 17 | 5304524651 | Screw, Hex Wsh Hd, M4.2 X 16, Grey |
|
- | |||||
| 18 | 5304524607 | Clamp, Compressor |
|
$ 2.89 | |||||
| 19 | 5304525042 | Tube, Drain, Extension |
|
Immediately | $ 9.86 | ||||
| 20 | 5304524755 | Trough, Drain, Evaporator |
|
$ 51.34 | |||||
| 21 | 5304524828 | Harness Assembly, Defrost Ntc |
|
Immediately | $ 36.86 | ||||
| 22 | 5304524791 | Base Assembly, Compressor, W/leg Levelers |
|
$ 117.85 | |||||
| 23 | 5304524720 | Cover Assembly, Evaporator, Grey |
|
$ 98.89 | |||||
| 24 | 5304528048 | Cover Assembly, Evap Fan, W/air Duct |
|
Immediately | $ 71.48 | ||||
| 26 | 240569202 | Screw, 8-18 X .500 |
|
$ 2.12 | |||||
| 27 | 5304524782 | Bracket, Fan Mounting |
|
Immediately | $ 23.86 | ||||
| 28 | 5304523741 | Motor-fan, Evaporator |
|
Immediately | $ 139.54 | ||||
| 29 | 5304535399 | Condenser Fan, Assembly, 29 #, W/shroud |
|
$ 94.28 | |||||
| 30 | 5304530136 | Compressor, Assembly, Vth1111y, 230v, W/grommets |
|
Immediately | $ 207.39 | ||||
| 31 | 5304519674 | Pan, Drain |
|
$ 39.47 | |||||
| 32 | 5304519745 | Baffle, Drain Pan, Air Block |
|
$ 7.80 | |||||
| 33 | 5304519751 | Seal, Foam, Air Block |
|
$ 3.08 | |||||
| 34 | 5304530281 | Grommet, Cmprsr Mtg, 34 |
|
- | |||||
| 35 | 5304523724 | Seal, Drain Pan, Foam |
|
$ 5.07 | |||||
| 36 | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| 48 | 5304524865 | Frame, Power Supply |
|
$ 21.69 | |||||
| 49 | 5304524866 | Pc Board, Assembly, Power Supply, W/housing |
|
Immediately | $ 247.99 | ||||
| 50 | 5304536820 | Assy-erf2004 Main Pcba+housing (Replaces: 5304536521) |
|
Immediately | $ 138.54 | ||||
| 51 | 5304530111 | Drain Jumper, Assembly, W/seal |
|
$ 19.52 | |||||
| 52 | 5304523694 | Baffle, Divider |
|
$ 7.96 | |||||
| 53 | 5304525744 | Cover, Drain Jumper |
|
$ 9.68 | |||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| NI | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.03 | |||||
| NI | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NI | 5304523801 | Screw, Hex Wash Hd, M4 X 10 |
|
- | |||||
| NI | 218103403 | Wire Tie |
|
- | |||||
| NI | 30534600 | Clip, Plastic, W/adhesive |
|
$ 3.79 | |||||
| NIA | 5304519744 | Tape, Drain Pan, Foam, Front |
|
- |
