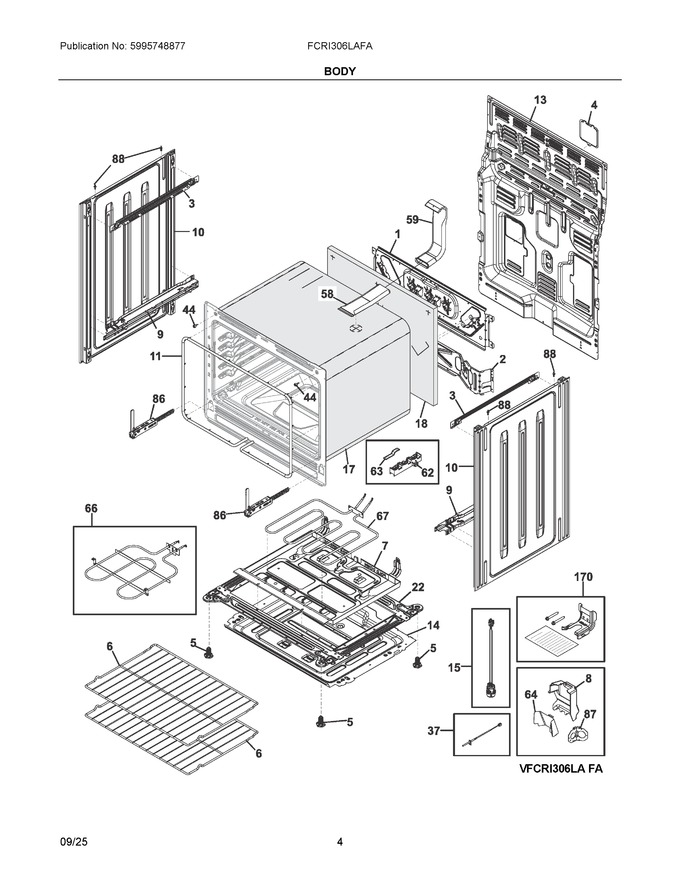

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140152666081		Plate, Rear Component, Upper		Appelez-nous	-
2	5304533425		Bracket, Components, Lower				$ 61.12
3	5304526493		Bracket, Side Panel, Cooling				$ 15.12
4	5304528328		Cover, Wiring				$ 8.65
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	5304531722		Rack, Oven, Flat			Immediately	$ 51.05
7	5304528326		Tray, Hidden Bake				$ 52.33
8	5304528549		Cover, Terminal Block			Immediately	$ 37.81
9	5304528546		Receptacle, Hinge Carrier			Immediately	$ 34.48
10	5304526334		Panel, Body Side, Black			Immediately	$ 138.48
11	5304526243		Seal, Door			Immediately	$ 51.87
12	318394805		Switch, Light, Door				$ 8.06
13	140288816022		Shield, Rear Wire   (Replaces: 140288816014)		Appelez-nous	-
14	5304533432		Shield, Insulation, Lower				$ 85.34
15	5304533411		Lamp Assembly, Oven, G9 40w, Halogen			Immediately	$ 36.50
22	5304533415		Base Rail, Assembly			Immediately	$ 137.66
24	5304534653		Clip, Support, Burner Box				$ 9.71
37	5304533448		Probe, Oven Temp, Sensor			Immediately	$ 49.14
44	316517600		Bumper, Front, Main				$ 12.05
58	5304534826		Tube, Vent, Lower		Appelez-nous	-
59	5304536493		Tube-vent Asm Upper Elec			Immediately	$ 38.11
63	5304536404		Strap, Ground		Appelez-nous	-
64	5304528550		Shield, Terminal Block				$ 9.50
66	140195757129		Element, Broil			Immediately	$ 56.13
67	140195760081		Element, Hidden, Bake, 2500w				$ 64.93
86	5304534789		Hinge, Oven Door, Black				$ 39.05
87	5304526449		Bracket, Power Cord				$ 8.29
88	316099501		Pin, Guide		Appelez-nous	-
170	316112010		Anti Tip Kit, Assy, 30", W/template			Immediately	$ 23.06
62B	A20698901		Terminal Block				$ 11.37
86A	5304534790		Hinge, Oven Door, Passive, (no Spring)				$ 29.57
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304529018		Harness, Wiring, Main				$ 82.57
NI	5304533455		Harness, Wiring, Low Voltage				$ 58.55
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 3.67
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316407200)			Immediately	$ 15.08
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIA	5304533495		Screw, Sd Hex Washer, 4.2 X 12.7		Appelez-nous	-
